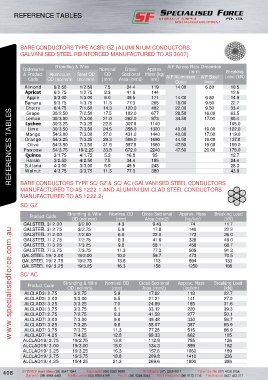

REFERENCE TABLES

BARE CONDUCTORS TYPE ACSR/GZ (ALUMINIUM CONDUCTORS,
GALVANISED STEEL REINFORCED MANUFACTURED TO AS 3607)

Stranding & Wire A/F Across Flats Dimension
Codename Nominal Cross- Approx. (mm) Breaking
& Product Aluminium Steel OD OD Sectional Mass (kg/ Load (kN)
Code OD (no/mm) (no/mm) (mm) Area (mm2) km) A/F Aluminium A/F Steel
Outer Inner
Almond 6/2.50 1/2.50 7.5 34.4 119 14.00 6.80 10.5
Apricot 6/2.75 1/2.75 8.3 41.6 144 12.6
Apple 6/3.00 1/3.00 9.0 49.5 171 14.00 6.80 14.9
Banana 6/3.75 1/3.75 11.3 77.3 268 18.00 9.50 22.7
Cherry 6/4.75 7/1.60 14.3 120.0 402 22.00 9.50 33.4
REFERENCES TABLES
Grape 30/2.50 7/2.50 17.5 182.0 677 28.50 16.00 63.5
Lemon 30/3.00 7/3.00 21.0 262.0 973 34.50 17.00 90.4
Lychee 30/3.25 7/3.25 22.8 307.0 1140 105.0
Lime 30/3.50 7/3.50 24.5 356.0 1320 40.00 19.00 122.0
Mango 54/3.00 7/3.00 27.0 431.0 1440 40.00 17.00 119.0
Orange 54/3.25 7/3.25 29.3 506.0 1690 44.50 19.00 137.0
Olive 54/3.50 7/3.50 31.5 587.0 1960 47.50 19.00 159.0
Pawpaw 54/3.75 19/2.25 33.8 672.0 2240 47.50 20.00 178.0
Quince 3/1.75 4/1.75 5.3 16.8 95 12.7
Raisin 3/2.50 4/2.50 7.5 34.4 195 24.4
Sultana 4/3.00 3/3.00 9.0 49.5 243 28.3
Walnut 4/3.75 3/3.75 11.3 77.3 380 43.9

BARE CONDUCTORS TYPE SC/GZ & SC/AC (GALVANISED STEEL CONDUCTORS
MANUFACTURED TO AS 1222.1 AND ALUMINIUM-CLAD STEEL CONDUCTORS
MANUFACTURED TO AS 1222.2)

SC/GZ

Product Code Stranding & Wire Nominal OD Cross-Sectional Approx. Mass Breaking Load
(kN)
(kg/km)
OD (no/mm)
(mm)
Area (mm2)
GALSTEEL 3/2.00 3/2.00 4.3 9.43 74 11.7
www.specialisedforce.com.au
GALSTEEL 3/2.75 3/2.75 5.9 17.8 140 22.2
GALSTEEL 7/2.00 7/2.00 6.0 22.0 173 26.0
GALSTEEL 7/2.75 7/2.75 8.3 41.6 328 49.0
GALSTEEL 7/3.25 7/3.25 9.8 58.1 458 68.7
GALSTEEL 7/3.75 7/3.75 11.3 77.3 609 91.3
GALSTEEL 19/2.00 19/2.00 10.0 59.7 473 70.5
GALSTEEL 19/2.75 19/2.75 13.8 113 894 133
GALSTEEL 19/3.25 19/3.25 16.3 158 1250 186
SC/AC

Stranding & Wire Nominal OD Cross-Sectional Approx. Mass Breaking Load
Product Code OD (no/mm) (mm) Area (mm2) (kg/km) (kN)
ALCLAD3/2.75 3/2.75 5.9 17.82 118 22.7
ALCLAD3/3.00 3/3.00 6.5 21.21 141 27.0
ALCLAD3/3.25 3/3.25 7.0 24.89 165 31.6
ALCLAD3/3.75 3/3.75 8.1 33.12 220 39.3
ALCLAD7/2.75 7/2.75 8.3 41.58 277 50.1
ALCLAD7/3.00 7/3.00 9.0 49.48 330 59.7
ALCLAD7/3.25 7/3.25 9.8 58.07 387 69.9
ALCLAD7/3.75 7/3.75 11.3 77.28 515 86.9
ALCLAD7/4.25 7/4.25 12.8 99.33 662 105
ALCLAD19/2.75 19/2.75 13.8 112.9 755 136
ALCLAD19/3.00 19/3.00 15.0 134.3 899 162
ALCLAD19/3.25 19/3.25 16.3 157.6 1060 189
ALCLAD19/3.75 19/3.75 18.8 209.8 1410 236
ALCLAD19/4.25 19/4.25 21.3 269.6 1800 286
