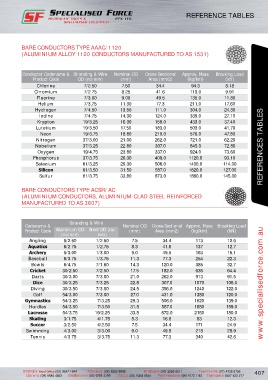

REFERENCE TABLES

BARE CONDUCTORS TYPE AAAC/1120
(ALUMINIUM ALLOY 1120 CONDUCTORS MANUFACTURED TO AS 1531)

Conductor Codename & Stranding & Wire Nominal OD Cross-Sectional Approx. Mass Breaking Load
Product Code OD (no/mm) (mm) Area (mm2) (kg/km) (kN)
Chlorine 7/2.50 7.50 34.4 94.3 8.18
Chromium 7/2.75 8.25 41.6 113.0 9.91
Fluorine 7/3.00 9.00 49.5 135.0 11.80
Helium 7/3.75 11.30 77.3 211.0 17.60
Hydrogen 7/4.50 13.50 111.0 304.0 24.30
Iodine 7/4.75 14.30 124.0 339.0 27.10
Krypton 19/3.25 16.30 158.0 433.0 37.40
Lutetium 19/3.50 17.50 183.0 503.0 41.70
Neon 19/3.75 18.80 210.0 576.0 47.80
Nitrogen 37/3.00 21.00 262.0 721.0 62.20
Nobelium 37/3.25 22.80 307.0 845.0 72.80
Oxygen 19/4.75 23.80 337.0 924.0 73.60 REFERENCES TABLES
Phosphorus 37/3.75 26.30 409.0 1120.0 93.10
Selenium 61/3.25 29.30 506.0 1400.0 114.00
Silicon 61/3.50 31.50 587.0 1620.0 127.00
Sulfur 61/3.75 33.80 673.0 1860.0 145.00

BARE CONDUCTORS TYPE ACSR/AC
(ALUMINIUM CONDUCTORS, ALUMINIUM-CLAD STEEL REINFORCED
MANUFACTURED TO AS 3607)

Stranding & Wire
Codename & Nominal OD Cross-Sectional Approx. Mass Breaking Load
Product Code Aluminium OD Steel OD (no/ (mm) Area (mm2) (kg/km) (kN)
(no/mm) mm)
Angling 6/2.50 1/2.50 7.5 34.4 113 10.6
Aquatics 6/2.75 1/2.75 8.3 41.6 137 12.7
Archery 6/3.00 1/3.00 9.0 49.5 163 15.1
Baseball 6/3.75 1/3.75 11.3 77.3 254 22.3
Bowls 6/4.75 7/1.60 14.3 120.0 385 32.7
Cricket 30/2.50 7/2.50 17.5 182.0 636 64.4
Darts 30/3.00 7/3.00 21.0 262.0 913 91.6
Dice 30/3.25 7/3.25 22.8 307.0 1070 106.0 www.specialisedforce.com.au
Diving 30/3.50 7/3.50 24.5 356.0 1240 122.0
Golf 54/3.00 7/3.00 27.0 431.0 1380 120.0
Gymnastics 54/3.25 7/3.25 29.3 506.0 1620 139.0
Hurdles 54/3.50 7/3.50 31.5 587.0 1880 159.0
Lacrosse 54/3.75 19/2.25 33.8 672.0 2150 180.0
Skating 3/1.75 4/1.75 5.3 16.8 83 12.3
Soccer 3/2.50 4/2.50 7.5 34.4 171 24.9
Swimming 4/3.00 3/3.00 9.0 49.5 218 28.9
Tennis 4/3.75 3/3.75 11.3 77.3 340 42.6
