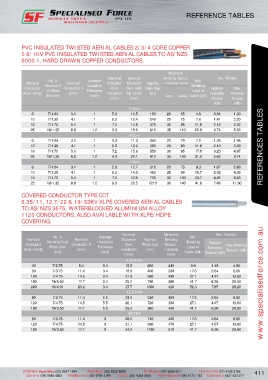

REFERENCE TABLES

PVC INSULATED TWISTED AERIAL CABLES 2/3/4 CORE COPPER
0.6/1KV PVC INSULATED TWISTED AERIAL CABLES TO AS/NZS
5000.1. HARD DRAWN COPPER CONDUCTORS.

Minimum
Nominal Nominal Bending Radius Rec. Tension
No. & Average Min.
Nominal Nominal X Nominal Insulation Diameter Diameter Approx. - Installed (mm) Breaking
Conductor of Wires Conductor X Thickness Over Over Laid- Mass (kg/ Load of Highest Max
Area (mm2) (mm) Insulation Up Cores km) Everyday Working
(No/mm) (mm) Core Cable Cable (kN)
(mm) (mm) Tension Tension
(kN) (kN)
2 Core
6 7/1.04 3.1 1 5.3 10.5 160 20 65 4.6 0.84 1.30
10 7/1.35 4.1 1 6.2 12.4 240 25 75 7.8 1.41 2.20
16 7/1.70 5.1 1 7.2 14.5 370 30 85 11.8 2.13 3.32
25 19/1.35 6.8 1.2 9.3 18.6 610 35 110 20.8 3.74 5.82
3 Core
6 7/1.04 3.1 1 5.3 11.3 240 20 70 7.0 1.25 1.95
10 7/1.35 4.1 1 6.2 13.3 360 25 80 11.8 2.12 3.29
16 7/1.70 5.1 1 7.2 15.6 550 30 95 17.8 3.20 4.97 REFERENCES TABLES
25 19/1.35 6.8 1.2 9.3 20.1 910 35 120 31.2 5.62 8.74
4 Core
6 7/1.04 3.1 1 5.3 12.7 310 20 75 9.3 1.67 2.60
10 7/1.35 4.1 1 6.2 14.9 480 25 90 15.7 2.82 4.39
16 7/1.70 5.1 1 7.2 17.5 730 30 100 23.7 4.26 6.63
25 19/1.35 6.8 1.2 9.3 22.5 1210 35 140 41.6 7.49 11.60

COVERED CONDUCTOR TYPE CCT
6.35/11, 12.7/22 & 19/33KV XLPE COVERED AERIAL CABLES
TO AS/NZS 3675. WATERBLOCKED ALUMINIUM ALLOY
1120 CONDUCTORS. ALSO AVAILABLE WITH XLPE/HDPE
COVERING.

Nominal Minimum Rec. Tension
No. & Average Min.
Nominal Nominal Diameter Approx. Bending
Conductor Nominal X of Conductor X Insulation Over Mass (kg/ Radius - Breaking Highest Max Working
Area (mm2) Wires (No/ (mm) Thickness Insulation km) Installed Load of Everyday Tension (kN)
mm) (mm) Cable (kN) Tension (kN)
(mm) (mm)
6.35/11kV
40 7/2.75 8.4 3.4 15.8 260 240 9.9 1.49 4.96
80 7/3.75 11.4 3.4 18.8 400 280 17.6 2.64 8.80
120 7/4.75 14.5 3.4 21.9 580 330 27.1 4.07 13.60
180 19/3.50 17.7 3.4 25.0 790 380 41.7 6.26 20.90 www.specialisedforce.com.au
240 19/4.01 20.2 3.4 27.7 1000 420 52.3 7.85 26.20
12.7/22kV
80 7/3.75 11.4 5.5 23.0 530 350 17.6 2.64 8.80
120 7/4.75 14.5 5.5 26.1 720 390 27.1 4.07 13.60
180 19/3.50 17.7 5.5 29.2 960 440 41.7 6.26 20.90
19/33kV
80 7/3.75 11.4 8 28.0 710 420 17.6 2.64 8.80
120 7/4.75 14.5 8 31.1 930 470 27.1 4.07 13.60
180 19/3.50 17.7 8 34.2 1190 510 41.7 6.26 20.90
