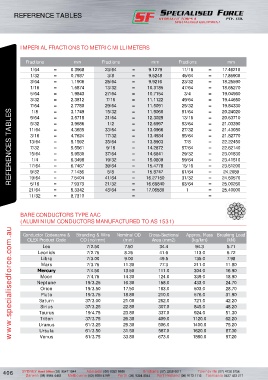

REFERENCE TABLES

IMPERIAL FRACTIONS TO METRIC MILLIMETERS

Fractions mm Fractions mm Fractions mm
1/64 = 0.3968 23/64 = 9.1279 11/16 = 17.46210
1/32 = 0.7937 3/8 = 9.5248 45/64 = 17.85900
3/64 = 1.1906 25/64 = 9.9216 23/32 = 18.25590
1/16 = 1.5874 13/32 = 10.3185 47/64 = 18.65270
5/64 = 1.9843 27/64 = 10.7154 3/4 = 19.04960
3/32 = 2.3812 7/16 = 11.1122 49/64 = 19.44650
7/64 = 2.7780 29/64 = 11.5091 25/32 = 19.84330
REFERENCES TABLES
1/8 = 3.1749 15/32 = 11.9060 51/64 = 20.24020
9/64 = 3.5718 31/64 = 12.3029 13/16 = 20.63710
5/32 = 3.9686 1/2 = 12.6997 53/64 = 21.03390
11/64 = 4.3655 33/64 = 13.0966 27/32 = 21.43080
3/16 = 4.7624 17/32 = 13.4934 55/64 = 21.82770
13/64 = 5.1592 35/64 = 13.8903 7/8 = 22.22450
7/32 = 5.5561 9/16 = 14.2872 57/64 = 22.62140
15/64 = 5.9530 37/64 = 14.6841 29/32 = 23.01830
1/4 = 6.3498 19/32 = 15.0809 59/64 = 23.41510
17/64 = 6.7467 39/64 = 15.4778 15/16 = 23.81200
9/32 = 7.1436 5/8 = 15.8747 61/64 = 24.2089
19/64 = 7.5404 41/64 = 16.27150 31/32 = 24.60570
5/16 = 7.9373 21/32 = 16.66840 63/64 = 25.00260
21/64 = 8.3342 43/64 = 17.06530 1 = 25.40000
11/32 = 8.7310 = =

BARE CONDUCTORS TYPE AAC
(ALUMINIUM CONDUCTORS MANUFACTURED TO AS 1531)

www.specialisedforce.com.au
Conductor Codename & Stranding & Wire Nominal OD Cross-Sectional Approx. Mass Breaking Load
OLEX Product Code OD (no/mm) (mm) Area (mm2) (kg/km) (kN)
Leo 7/2.50 7.50 34.4 94.3 5.71
Leonids 7/2.75 8.25 41.6 113.0 6.72
Libra 7/3.00 9.00 49.5 135.0 7.98
Mars 7/3.75 11.30 77.3 211.0 11.80
Mercury 7/4.50 13.50 111.0 304.0 16.90
Moon 7/4.75 14.30 124.0 339.0 18.90
Neptune 19/3.25 16.30 158.0 433.0 24.70
Orion 19/3.50 17.50 183.0 503.0 28.70
Pluto 19/3.75 18.80 210.0 576.0 31.90
Saturn 37/3.00 21.00 262.0 721.0 42.20
Sirius 37/3.25 22.80 307.0 845.0 48.20
Taurus 19/4.75 23.80 337.0 924.0 51.30
Triton 37/3.75 26.30 409.0 1120.0 62.20
Uranus 61/3.25 29.30 506.0 1400.0 75.20
Ursula 61/3.50 31.50 587.0 1620.0 87.30
Venus 61/3.75 33.80 673.0 1860.0 97.20
