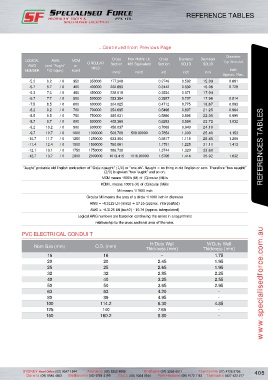

REFERENCE TABLES

...Continued from Previous Page

Diameter
LOGICAL AWG MCM CIRCULAR Cross Max Metric UL Cross Diameter Diameter Typ. Stranded
AWG (and “Aught” or MILS Section 486 Equivalent Section SOLID SOLID
NUMBER */0 Equiv) kcmil mm2 mm2 in2 inch mm inch
Approx. Max.
-5.2 6.2 / 0 350 350000 177.348 0.2749 0.592 15.03 0.681
-5.7 6.7 / 0 400 400000 202.683 0.3142 0.632 16.06 0.728
-6.3 7.3 / 0 450 450000 228.018 0.3534 0.671 17.04
-6.7 7.7 / 0 500 500000 253.354 0.3927 0.707 17.96 0.814
-7.5 8.5 / 0 600 600000 304.025 0.4712 0.775 19.67 0.893
-8.2 9.2 / 0 700 700000 354.695 0.5498 0.837 21.25 0.964
-8.5 9.5 / 0 750 750000 380.031 0.5890 0.866 22.00 0.999
-8.7 9.7 / 0 800 800000 405.366 0.6283 0.894 22.72 1.032
-9.2 10.2 / 0 900 900000 456.037 0.7069 0.949 24.10
-9.7 10.7 / 0 1000 1000000 506.708 508.00000 0.7854 1.000 25.40 1.153
-10.7 11.7 / 0 1250 1250000 633.384 0.9817 1.118 28.40 1.289
-11.4 12.4 / 0 1500 1500000 760.061 1.1781 1.225 31.11 1.413
-12.1 13.1 / 0 1750 1750000 886.738 1.3744 1.323 33.60 REFERENCES TABLES
-12.7 13.7 / 0 2000 2000000 1013.415 1016.00000 1.5708 1.414 35.92 1.632

“Aught” probable old English contraction of “On(e n)aught” (1/0) or “one oh”. Naught = no thing in old English or zero. Therefore “two naught”
(2/0) is spoken “two ‘aught” and so on.
MCM means 1000’s (M) of (C)ircular (M)ils
KCMIL means 1000’s (K) of (C)ircular (M)ils
Mil means 1/1000 inch
Circular Mil means the area of a circle 1/1000 inch in diameter
AWG = -4.3125 LN (mm2) + 17.16 (approx. interpolated)
AWG = -4.3125 LN (inch2) - 10.74 (approx. interpolated)
Logical AWG numbers are based on continuing the series in a logarithmic
relationship to the cross sectional area of the wire.

PVC ELECTRICAL CONDUIT

H/Duty Wall M/Duty Wall
Nom Size (mm) O.D. (mm)
Thickness (mm) Thickness (mm)
16 16 - 1.75
20 20 2.45 1.95
25 25 2.65 1.95
32 32 2.85 2.25
40 40 3.25 2.55
50 50 3.65 2.95 www.specialisedforce.com.au
63 63 4.20 -
80 89 4.95 -
100 114.2 6.30 4.85
125 140 7.65 -
150 160.2 8.80 -
