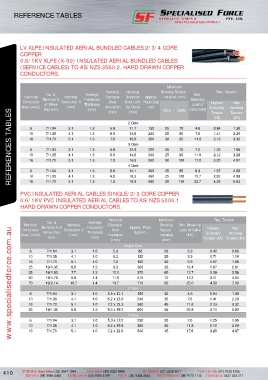

REFERENCE TABLES

LV XLPE INSULATED AERIAL BUNDLED CABLES 2/3/4 CORE
COPPER
0.6/1KV XLPE (X-90) INSULATED AERIAL BUNDLED CABLES
(SERVICE CABLES) TO AS/NZS 3560.2. HARD DRAWN COPPER
CONDUCTORS.

Minimum
Nominal Nominal Bending Radius - Rec. Tension
No. & Average Min.
Nominal Nominal Diameter Diameter Approx. Installed (mm)
Conductor Nominal X Conductor X Insulation Over Over Laid- Mass (kg/ Breaking Highest Max
Area (mm2) of Wires (mm) Thickness Insulation Up Cores km) Load of Everyday Working
(No/mm) (mm) Core Cable Cable (kN)
REFERENCES TABLES
(mm) (mm) Tension Tension
(kN) (kN)
2 Core
6 7/1.04 3.1 1.3 5.8 11.7 150 25 70 4.6 0.84 1.30
10 7/1.35 4.1 1.3 6.8 13.5 230 25 80 7.8 1.41 2.20
16 7/1.70 5.1 1.3 7.8 15.6 350 30 95 11.8 2.13 3.32
3 Core
6 7/1.04 3.1 1.3 5.8 12.6 220 25 75 7.0 1.25 1.95
10 7/1.35 4.1 1.3 6.8 14.6 340 25 90 11.8 2.12 3.29
16 7/1.70 5.1 1.3 7.8 16.9 520 30 100 17.8 3.20 4.97
4 Core
6 7/1.04 3.1 1.3 5.8 14.1 290 25 85 9.3 1.67 2.60
10 7/1.35 4.1 1.3 6.8 16.3 460 25 100 15.7 2.82 4.39
16 7/1.70 5.1 1.3 7.8 18.9 690 30 110 23.7 4.26 6.63

PVC INSULATED AERIAL CABLES SINGLE/2/3 CORE COPPER
0.6/1KV PVC INSULATED AERIAL CABLES TO AS/NZS 5000.1.
HARD DRAWN COPPER CONDUCTORS.

Nominal Minimum Rec. Tension
No. & Average
Nominal Nominal X of Nominal Insulation Diameter Approx. Mass Bending Min. Breaking
www.specialisedforce.com.au
Conductor Wires (No/ Conductor X Thickness Over (kg/km) Radius - Load of Cable Highest Max
Area (mm2) (mm) Insulation Installed (kN) Everyday Working
mm) (mm) Tension (kN) Tension (kN)
(mm) (mm)
Single Core
6 7/1.04 3.1 1.0 5.3 80 20 2.3 0.42 0.65
10 7/1.35 4.1 1.0 6.2 120 25 3.9 0.71 1.10
16 7/1.70 5.1 1.0 7.2 180 30 5.9 1.07 1.66
25 19/1.35 6.8 1.2 9.3 300 35 10.4 1.87 2.91
35 19/1.53 7.7 1.2 10.2 370 60 12.7 2.29 3.56
50 19/1.78 8.9 1.4 11.9 510 70 17.3 3.11 4.84
70 19/2.14 10.7 1.4 13.7 710 80 25.0 4.50 7.00
2 Core
6 7/1.04 3.1 1.0 5.3 x 11.1 150 30 4.6 0.84 1.30
10 7/1.35 4.1 1.0 6.2 x 13.0 240 35 7.8 1.41 2.20
16 7/1.70 5.1 1.0 7.2 x 15.1 360 45 11.8 2.13 3.32
25 19/1.35 6.8 1.2 9.3 x 19.2 600 55 20.8 3.74 5.82
3 Core
6 7/1.04 3.1 1.0 5.3 x 17.0 230 30 7.0 1.25 1.95
10 7/1.35 4.1 1.0 6.2 x 19.8 360 35 11.8 2.12 3.29
16 7/1.70 5.1 1.0 7.2 x 22.9 540 45 17.8 3.20 4.97
