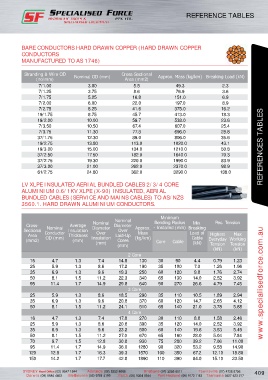

REFERENCE TABLES

BARE CONDUCTORS HARD DRAWN COPPER (HARD DRAWN COPPER
CONDUCTORS
MANUFACTURED TO AS 1746)

Stranding & Wire OD Nominal OD (mm) Cross-Sectional Approx. Mass (kg/km) Breaking Load (kN)
(no/mm) Area (mm2)
7/1.00 3.00 5.5 49.3 2.3
7/1.25 3.75 8.6 76.9 3.6
7/1.75 5.25 16.8 151.0 6.9
7/2.00 6.00 22.0 197.0 8.9
7/2.75 8.25 41.6 375.0 16.2
19/1.75 8.75 45.7 413.0 18.3
19/2.00 10.00 59.7 538.0 23.6
7/3.50 10.50 67.4 607.0 25.4
7/3.75 11.30 77.3 696.0 28.8
37/1.75 12.30 89.0 806.0 35.6
19/2.75 13.80 113.0 1020.0 43.1
19/3.00 15.00 134.0 1210.0 50.8
37/2.50 17.50 182.0 1640.0 70.3 REFERENCES TABLES
37/2.75 19.30 220.0 1990.0 83.9
37/3.00 21.00 262.0 2370.0 98.9
61/2.75 24.80 362.0 3290.0 138.0

LV XLPE INSULATED AERIAL BUNDLED CABLES 2/3/4 CORE
ALUMINIUM 0.6/1KV XLPE (X-90) INSULATED, AERIAL
BUNDLED CABLES (SERVICE AND MAINS CABLES) TO AS/NZS
3560.1. HARD DRAWN ALUMINIUM CONDUCTORS.

Minimum
Nominal Nominal Bending Radius Min. Rec. Tension
Cross- Average Diameter
Sectional Nominal Insulation Diameter Over Approx. - Installed (mm) Breaking
Area Conductor Thickness Over Laid-Up Mass Load of Highest Max
(mm2) OD (mm) (mm) Insulation Cores (kg/km) Core Cable Cable Everyday Working
(mm) (mm) (kN) Tension Tension
(kN) (kN)
2 Core
16 4.7 1.3 7.4 14.8 130 30 90 4.4 0.79 1.23
25 5.9 1.3 8.6 17.2 190 35 100 7.0 1.26 1.96
35 6.9 1.3 9.6 19.3 250 60 120 9.8 1.76 2.74
50 8.1 1.5 11.2 22.3 340 65 130 14.0 2.52 3.92
95 11.4 1.7 14.9 29.8 640 90 270 26.6 4.79 7.45 www.specialisedforce.com.au
3 Core
25 5.9 1.3 8.6 18.5 290 35 110 10.5 1.89 2.94
35 6.9 1.3 9.6 20.8 370 60 120 14.7 2.65 4.12
50 8.1 1.5 11.2 24.1 510 65 140 21.0 3.78 5.88
4 Core
16 4.7 1.3 7.4 17.8 270 30 110 8.8 1.58 2.46
25 5.9 1.3 8.6 20.8 390 35 120 14.0 2.52 3.92
35 6.9 1.3 9.6 23.2 500 60 140 19.6 3.53 5.49
50 8.1 1.5 11.2 27.0 670 65 160 28.0 5.04 7.84
70 9.7 1.5 12.8 30.8 930 75 280 39.2 7.06 11.00
95 11.4 1.7 14.9 36.0 1280 90 320 53.2 9.58 14.90
120 12.8 1.7 16.3 39.3 1570 100 350 67.2 12.10 18.80
150 14.2 1.7 17.7 42.8 1890 110 390 84.0 15.10 23.50
