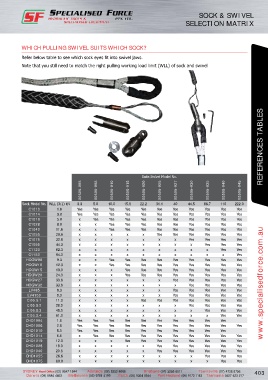

Page 415 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SOCK & SWIVEL
SELECTION MATRIX

WHICH PULLING SWIVEL SUITS WHICH SOCK?

Refer below table to see which sock eyes fit into swivel jaws.
Note that you still need to match the right pulling working load limit (WLL) of sock and swivel

Suits Swivel Model No. REFERENCES TABLES
00505-005 00505-008 00505-010 00505-015 00505-020 00505-025 00505-027 00505-030 00505-035 00505-040 00505-045

Sock Model No. WLL (3:1) kN 3.3 5.0 10.0 15.6 22.2 31.1 40 44.5 66.7 110 222.0
C1010 1.6 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
C1014 3.0 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
C1019 5.0 x Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
C1028 8.0 x x Yes Yes Yes Yes Yes Yes Yes Yes Yes
C1040 11.6 x x Yes Yes Yes Yes Yes Yes Yes Yes Yes
C1055 20.6 x x x x x Yes Yes Yes Yes Yes Yes
C1075 32.6 x x x x x x x Yes Yes Yes Yes
C1095 44.3 x x x x x x x x Yes Yes Yes
C1120 62.3 x x x x x x x x x Yes Yes
C1150 94.3 x x x x x x x x x x Yes
HDGW08 9.3 x x Yes Yes Yes Yes Yes Yes Yes Yes Yes
HDGW10 12.3 x x Yes Yes Yes Yes Yes Yes Yes Yes Yes
HDGW15 19.0 x x x Yes Yes Yes Yes Yes Yes Yes Yes
HDGW20 24.3 x x x Yes Yes Yes Yes Yes Yes Yes Yes
HDGW27 33.6 x x x x x x Yes Yes Yes Yes Yes
HDGW32 33.6 x x x x x x x Yes Yes Yes Yes www.specialisedforce.com.au
LV495 8.3 x x x x x x Yes Yes Yes Yes Yes
LV4150 8.3 x x x x x x Yes Yes Yes Yes Yes
C 06.S.1 11.0 x x x x Yes Yes Yes Yes Yes Yes Yes
C 06.S.2 28.0 x x x x x x x Yes Yes Yes Yes
C 06.S.3 45.0 x x x x x x x x Yes Yes Yes
C 06.S.4 61.0 x x x x x x x x x Yes Yes
CHD1004 1.6 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
CHD1006 2.6 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
CHD1010 5.0 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
CHD1014 6.6 x Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
CHD1019 12.3 x x x Yes Yes Yes Yes Yes Yes Yes Yes
CHD1028 18.0 x x x x x Yes Yes Yes Yes Yes Yes
CHD1040 20.6 x x x x x Yes Yes Yes Yes Yes Yes
CHD1055 26.6 x x x x x x x x Yes Yes Yes
CHD1075 60.0 x x x x x x x x x Yes Yes
