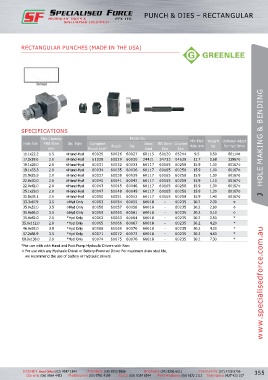

PUNCH & DIES – RECTANGULAR

RECTANGULAR PUNCHES (MADE IN THE USA)

SPECIFICATIONS

Max Capacity Model No. Min Pilot Weight Optional Adapt
Hole Size Mild Steel Op. Type Complete Punch Die Draw BB Drive Counter Hole mm Kg for Hyd Drive J HOLE MAKING & BENDING
mm Punch Unit* Stud Nut Nut
11.1x22.2 1.5 ◊Hand-Hyd 60025 60026 60027 60115 60120 05244 9.5 0.50 60114◊
17.0x19.0 2.0 ◊Hand-Hyd 61028 60029 60030 34421 34733 04638 12.7 0.68 33967◊
19.1x29.0 2.0 ◊Hand-Hyd 60031 60032 60033 60117 60165 60258 15.9 1.00 60167◊
19.1x33.3 2.0 ◊Hand-Hyd 60034 60035 60036 60117 60165 60258 15.9 1.00 60167◊
21.9x25.9 2.0 ◊Hand-Hyd 60037 60038 60039 60117 60165 60258 15.9 1.00 60167◊
22.0x30.0 2.0 ◊Hand-Hyd 60040 60041 60042 60117 60165 60258 15.9 1.10 60167◊
22.0x42.0 2.0 ◊Hand-Hyd 60043 60045 60046 60117 60165 60258 15.9 1.30 60167◊
25.1x29.0 2.0 ◊Hand-Hyd 60047 60048 60049 60117 60165 60258 15.9 1.20 60167◊
31.8x35.1 2.0 ◊Hand-Hyd 60050 60051 60052 60117 60165 60258 15.9 1.40 60167◊
33.3x67.9 3.5 ◊Hyd Only 60053 60054 60055 60018 - 60235 30.2 2.30 ◊
35.0x52.0 3.5 ◊Hyd Only 60056 60057 60058 60018 - 60235 30.2 2.80 ◊
35.0x65.0 3.5 ◊Hyd Only 60059 60060 60061 60018 - 60235 30.2 3.10 ◊
35.0x82.0 2.0 *Hyd Only 60062 60063 60064 60018 - 60235 30.2 3.50 *
35.0x112.0 2.0 *Hyd Only 60065 60066 60067 60018 - 60235 30.2 4.20 *
46.0x92.0 3.5 *Hyd Only 60068 60069 60070 60018 - 60235 30.2 4.00 *
57.2x88.9 3.5 *Hyd Only 60071 60072 60073 60018 - 60235 30.2 4.60 *
68.0x138.0 2.0 *Hyd Only 60074 60075 60076 60018 - 60235 30.2 7.30 *
*For use with with Hand and Foot Pump Hydraulic Drivers with Ram
◊ For use with any Hydraulic Driver or Battery-Powered Driver For maximum draw stud life,
we recommend the use of battery or hydraulic drivers www.specialisedforce.com.au
