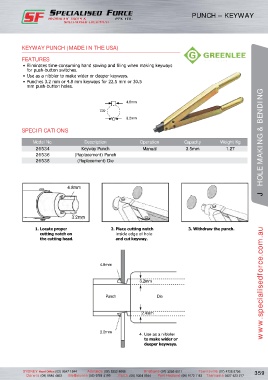

Page 371 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH – KEYWAY

KEYWAY PUNCH (MADE IN THE USA)

FEATURES
• Eliminates time-consuming hand sawing and filing when making keyways
for push-button switches.
• Use as a nibbler to make wider or deeper keyways.
• Punches 3.2 mm or 4.8 mm keyways for 22.5 mm or 30.5
mm push-button holes.

4.8mm
720
3.2mm

SPECIFICATIONS

Model No. Description Operation Capacity Weight Kg J HOLE MAKING & BENDING
26534 Keyway Punch Manual 3.5mm 1.27
26536 (Replacement) Punch
26538 (Replacement) Die

4.8mm

3.2mm

1. Locate proper 2. Place cutting notch 3. Withdraw the punch.
cutting notch on inside edge of hole
the cutting head. and cut keyway.

4.8mm

3.2mm www.specialisedforce.com.au

Punch Die

2.4mm

3.2mm
4. Use as a nibbler
to make wider or
deeper keyways.
