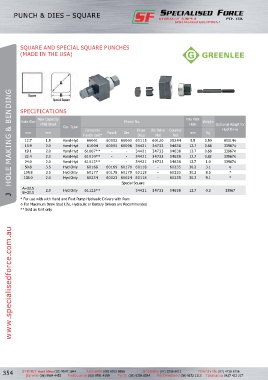

Page 366 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH & DIES – SQUARE

SQUARE AND SPECIAL SQUARE PUNCHES
(MADE IN THE USA)

J HOLE MAKING & BENDING

SPECIFICATIONS
Max Capacity Min Pilot
Hole Size Model No. Weight
Mild Steel Hole Optional Adapt for
Op. Type Hyd Drive
mm mm Complete Punch Die Draw BB Drive Counter mm Kg
Punch Unit* Stud Nut Nut
12.7 1.5 Hand-Hyd 60001 60002 60003 60115 60120 05244 9.5 0.50 60114◊
15.9 2.0 Hand-Hyd 61004 60005 60006 34421 34733 04638 12.7 0.68 33967◊
19.1 2.0 Hand-Hyd 61007** - - 34421 34733 04638 12.7 0.68 33967◊
22.4 2.0 Hand-Hyd 61010** - - 34421 34733 04638 12.7 0.82 33967◊
24.0 2.0 Hand-Hyd 61013** - - 34421 34733 04638 12.7 1.0 33967◊
50.8 3.5 Hyd Only 60168 60169 60170 60118 - 60235 30.2 3.1 ◊
104.8 3.5 Hyd Only 60177 60178 60179 60118 - 60235 30.2 8.5 *
138.0 2.0 Hyd Only 60234 60023 60024 60118 - 60235 30.2 9.1 *
Special Square
A=22.5 2.0 Hyd Only 61125** 34421 34733 04638 12.7 0.3 33967
B=20.1
* For use with with Hand and Foot Pump Hydraulic Drivers with Ram
◊ For Maximum Draw Stud Life, Hydraulic or Battery Drivers are Recommended
** Sold as Unit only
