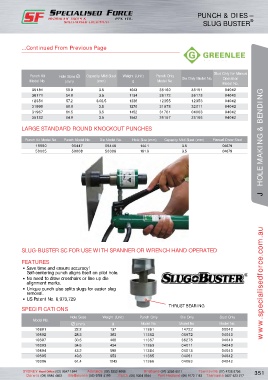

Page 363 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH & DIES –
SLUG BUSTER ®

...Continued From Previous Page

Stud Only for Manual
Punch Kit Hole Sizes Capacity Mild Steel Weight (Unit) Punch Only Die Only Model No. Operation
Model No. (mm) (mm) g Model No.
Model No.
35181 50.8 3.5 1043 35160 35161 04042
36171 54.0 3.5 1134 36172 36173 04042
12351 57.2 3.03.5 1336 12355 12353 04042
31998 60.0 3.5 1270 31978 32011 04042
31967 61.5 3.5 1452 31761 04063 04042
35182 64.0 3.5 1542 35167 35166 04042
LARGE STANDARD ROUND KNOCKOUT PUNCHES

Punch Kit Model No. Punch Model No. Die Model No. Hole Size (mm) Capacity Mild Steel (mm) Manual Draw Stud
19980 05447 05448 144.1 3.5 04679 J HOLE MAKING & BENDING
50005 50008 50006 161.9 3.5 04679

SLUG-BUSTER SC FOR USE WITH SPANNER OR WRENCH HAND OPERATED

FEATURES
• Save time and ensure accuracy!
Self-centering punch aligns itself on pilot hole.
• No need to draw crosshairs or line up die
alignment marks. www.specialisedforce.com.au
• Unique punch also splits slugs for easier slug
removal.
• US Patent No. 6,973,729
SPECIFICATIONS THRUST BEARING

Hole Sizes Weight (Unit) Punch Only Die Only Stud Only
Model No.
(mm) g Model No. Model No. Model No.
10801 22.2 137 11361 14722 00042
10802 28.3 363 11362 06972 04040
10807 30.5 408 11357 36278 04040
10803 34.6 454 11363 04011 04040
10804 43.2 590 11364 04013 04040
10805 49.6 953 11365 04061 04042
10806 61.4 1043 11366 04063 04042
