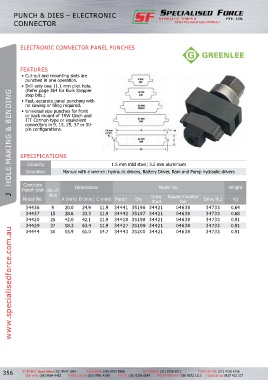

Page 368 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH & DIES – ELECTRONIC
CONNECTOR

ELECTRONIC CONNECTOR PANEL PUNCHES

FEATURES
• Cut-out and mounting slots are
punched in one operation.
• Drill only one 11.1 mm pilot hole.
(Refer page 364 for Kwik Stepper
J HOLE MAKING & BENDING
step bits.)
• Fast, accurate panel punching with
no sawing or filing required.
• Universal size punches for front
or back mount of TRW Cinch and
ITT Cannon-type or equivalent
connectors in 9, 15, 25, 37 or 50-
pin configurations.

SPECIFICATIONS

Capacity 1.5 mm mild steel; 3.5 mm aluminium
Operation Manual with a wrench; hydraulic drivers, Battery Driver, Ram and Pump hydraulic drivers

Complete
Punch Unit No of Dimensions Model No. Weight
Pins Draw Square Counter
Model No. A (mm) B (mm) C (mm) Punch Die Stud Nut Drive Nut Kg

34436 9 20.0 24.9 11.9 34441 35196 34421 04638 34733 0.64
34437 15 28.6 33.3 11.9 34442 35197 34421 04638 34733 0.68
34420 25 42.0 42.1 11.9 34418 35198 34421 04638 34733 0.91
34429 37 58.3 63.4 11.9 34427 35199 34421 04638 34733 0.91
www.specialisedforce.com.au
34444 50 55.9 61.0 14.7 34443 35200 34421 04638 34733 0.91
