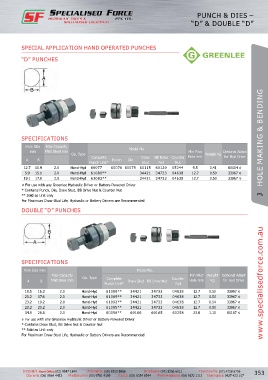

Page 365 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH & DIES –
“D” & DOUBLE “D”

SPECIAL APPLICATION HAND OPERATED PUNCHES

“D” PUNCHES

SPECIFICATIONS

Hole Size Max Capacity J HOLE MAKING & BENDING
mm Mild Steel mm Model No. Min Pilot Optional Adapt
Op. Type Hole mm Weight Kg for Hyd Drive
A B Complete Punch Die Draw BB Drive Counter
Punch Unit* Stud Nut Nut
12.7 11.9 2.0 Hand-Hyd 60077 60078 60079 60115 60120 05244 9.5 0.41 60114 ◊
5.9 15.1 2.0 Hand-Hyd 61080** 34421 34733 04638 12.7 0.50 33967 ◊
19.1 17.9 2.0 Hand-Hyd 61083** 34421 34733 04638 12.7 0.50 33967 ◊
◊ For use with any Greenlee Hydraulic Driver or Battery-Powered Driver
* Contains Punch, Die, Draw Stud, BB Drive Nut & Counter Nut
** Sold as Unit only
For Maximum Draw Stud Life, Hydraulic or Battery Drivers are Recommended
DOUBLE “D” PUNCHES

SPECIFICATIONS
Hole Size mm Model No.
Max Capacity Op. Type Min Pilot Weight Optional Adapt
A B Mild Steel mm Complete Draw Stud BB Drive Nut Counter Hole mm Kg for Hyd Drive
Punch Unit* Nut www.specialisedforce.com.au
19.5 16.3 2.0 Hand-Hyd 61086** 34421 34733 04638 12.7 0.50 33967 ◊
20.2 17.6 2.0 Hand-Hyd 61089** 34421 34733 04638 12.7 0.50 33967 ◊
23.2 19.2 2.0 Hand-Hyd 61092** 34421 34733 04638 12.7 0.54 33967 ◊
23.2 20.2 2.0 Hand-Hyd 61095** 34421 34733 04638 12.7 0.90 33967 ◊
34.9 28.6 2.0 Hand-Hyd 60098** 60166 60165 60258 23.8 1.10 60167 ◊
◊ For use with any Greenlee Hydraulic Driver or Battery-Powered Driver
* Contains Draw Stud, BB Drive Nut & Counter Nut
** Sold as Unit only
For Maximum Draw Stud Life, Hydraulic or Battery Drivers are Recommended
