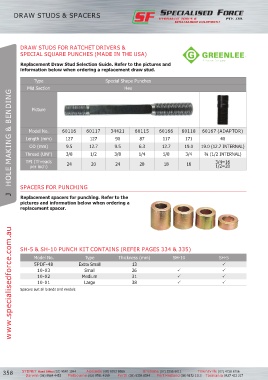

DRAW STUDS & SPACERS

DRAW STUDS FOR RATCHET DRIVERS &
SPECIAL SQUARE PUNCHES (MADE IN THE USA)

Replacement Draw Stud Selection Guide. Refer to the pictures and
information below when ordering a replacement draw stud.

Type Special Shape Punches
Mid Section Hex
J HOLE MAKING & BENDING


Model No. 60116 60117 34421 60115 60166 60118 60167 (ADAPTOR)
Length (mm) 127 127 90 87 117 171 40
OD (mm) 9.5 12.7 9.5 6.3 12.7 19.0 19.0 (12.7 INTERNAL)
Thread (UNF) 3/8 1/2 3/8 1/4 5/8 3/4 ¾ (1/2 INTERNAL)
TPI (Threads 24 20 24 28 18 16 3/4=16
per inch) 1/2=20

SPACERS FOR PUNCHING

Replacement spacers for punching. Refer to the
pictures and information below when ordering a
replacement spacer.

www.specialisedforce.com.au

SH-5 & SH-10 PUNCH KIT CONTAINS (REFER PAGES 334 & 335)
Model No. Type Thickness (mm) SH-10 SH-5
5PDF-48 Extra Small 13 P
10-03 Small 26 P P
10-02 Medium 31 P P
10-01 Large 38 P P

Spacers suit all brands and models
