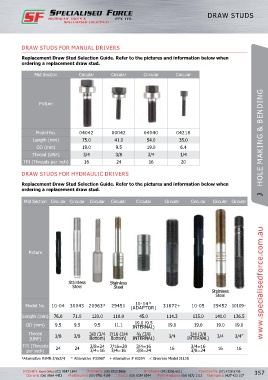

Page 369 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DRAW STUDS

DRAW STUDS FOR MANUAL DRIVERS

Replacement Draw Stud Selection Guide. Refer to the pictures and information below when
ordering a replacement draw stud.

Mid Section Circular Circular Circular Circular


Model No. 04042 00042 04040 04218
Length (mm) 75.0 41.0 54.0 35.0 J HOLE MAKING & BENDING
OD (mm) 19.0 9.5 19.0 6.4
Thread (UNF) 3/4 3/8 3/4 1/4
TPI (Threads per inch) 16 24 16 20

DRAW STUDS FOR HYDRAULIC DRIVERS

Replacement Draw Stud Selection Guide. Refer to the pictures and information below when
ordering a replacement draw stud.

Mid Section Circular Circular Circular Circular Circular Circular Circular Circular Circular


Stainless Stainless www.specialisedforce.com.au
Steel Steel
Stainless
Steel
10-14^
Model No. 10-04 30043 20963* 29451 (ADAPTOR) 31872+ 10-05 29452 10109 <

Length (mm) 76.0 71.0 120.0 110.0 45.0 114.3 135.0 140.0 136.5
19.0 (9.5
OD (mm) 9.5 9.5 9.5 11.1 INTERNAL) 19.0 19.0 19.0 19.0
Thread 3/8 3/8 3/8 (3/4 7/16 (3/4 ¾ (3/8 3/4 3/4 (3/8 3/4 3/4”
(UNF) Bottom) Bottom) INTERNAL) INTERNAL)
TPI (Threads 24 24 3/8=24 7/16=20 3/4=16 16 3/4=16 16 16
per inch) 3/4=16 3/4=16 3/8=24 3/8=24

*Alternative #SMR-3/8x3/4 ^ Alternative #33967 + Alternative # 03294 < Greenlee Model 2113B
