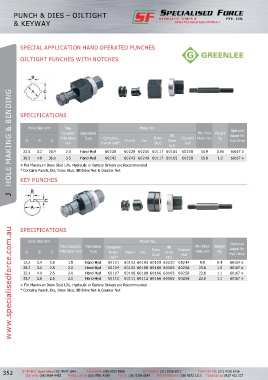

PUNCH & DIES – OILTIGHT
& KEYWAY

SPECIAL APPLICATION HAND OPERATED PUNCHES

OILTIGHT PUNCHES WITH NOTCHES

J HOLE MAKING & BENDING

SPECIFICATIONS

Hole Size mm Max Model No. Optional
Capacity Operation BB Min Pilot Weight Adapt for
Mild Steel Type Complete Draw Counter Hole mm Kg
A B C Punch Die Drive Hyd Drive
mm Punch Unit* Stud Nut
Nut
22.5 3.2 25.4 2.0 Hand-Hyd 60238 60239 60250 60117 60165 60258 15.9 0.95 60167 ◊
30.5 4.8 36.0 3.5 Hand-Hyd 60242 60243 60249 60117 60165 60258 15.9 1.2 60167 ◊
◊ For Maximum Draw Stud Life, Hydraulic or Battery Drivers are Recommended
* Contains Punch, Die, Draw Stud, BB Drive Nut & Counter Nut

KEY PUNCHES

SPECIFICATIONS
www.specialisedforce.com.au
Hole Size mm Model No.
Optional
Max Capacity Operation Complete BB Min Pilot Weight Adapt for
A B C Mild Steel mm Type Punch Punch Die Draw Drive Counter Hole mm Kg Hyd Drive
Unit* Stud Nut Nut
12.2 1.4 0.8 1.5 Hand-Hyd 60101 60102 60103 60115 60120 05244 9.5 0.4 60114 ◊
29.7 3.1 2.5 2.0 Hand-Hyd 60104 60105 60106 60166 60165 60258 23.8 1.0 60167 ◊
32.1 4.0 2.5 2.0 Hand-Hyd 60107 60108 60109 60166 60165 60258 23.8 1.1 60167 ◊
33.7 2.6 2.5 2.0 Hand-Hyd 60110 60111 60112 60166 60165 60258 23.8 1.1 60167 ◊
◊ For Maximum Draw Stud Life, Hydraulic or Battery Drivers are Recommended
* Contains Punch, Die, Draw Stud, BB Drive Nut & Counter Nut
