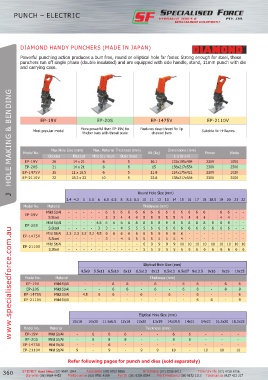

Page 372 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH – ELECTRIC

DIAMOND HANDY PUNCHERS (MADE IN JAPAN)

Powerful punching action produces a burr free, round or elliptical hole far faster. Strong enough for steel, these
punchers run off single phase (double insulated) and are equipped with side handle, stand, 11mm punch with die
and carrying case.

J HOLE MAKING & BENDING

EP-19V EP-20S EP-1475V EP-2110V

Most popular model More powerful than EP-19V, for Features deep throat for lip Suitable for H-Beams
thicker bars with throat scale
channel bars

Max Hole Size (mm) Max. Material Thickness (mm) Dimensions (mm)
Model No. Wt (kg) Power Watts
Circular Eliptical Mild St / Alum Stain Steel L x W x H
EP-19V 20 14 x 21 6 5 16.1 133x195x484 230V 1050
EP-20S 21 14 x 21 8 6 15 138x217x554 230V 2500
EP-1475V 15 11 x 16.5 6 5 11.8 124x175x421 230V 1020
EP-2110V 22 18.2 x 22 10 5 23.8 138x217x554 230V 2500

Round Hole Size (mm)
3.4 4.2 5 5.5 6 6.5 6.5 8 8.5 8.5 10 11 12 13 14 15 16 17 18 18.5 19 20 21 22
Model No. Material Thickness (mm)
Mild St/Al - - - - - 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 - -
EP-19V
S.Steel - - - - - 3 3 4 4 4 5 5 5 5 5 4 4 4 4 4 4 - -
Mild St/Al - - - - 4.5 6 6 6 6 8 8 8 8 8 8 8 8 8 8 8 8 8 - -
EP-20S
S.Steel - - - - 3 3 - 4 5 5 5 6 6 6 6 6 6 6 6 6 6 6 - -
www.specialisedforce.com.au
Mild St/Al 2.3 2.3 3.2 3.2 4.5 6 6 6 6 6 6 6 6 6 6 6 - - - - - - - -
EP-1475V
S.Steel - - - - - 3 - 4 5 5 5 5 5 5 5 4 - - - - - - - -
Mild St/Al - - - - - - - - - - 6 9 9 9 9 10 10 10 10 10 10 10 10 10
EP-2110V
S.Steel - - - - - - - - - - 5 5 5 5 5 6 6 6 6 6 6 6 6 6

Eliptical Hole Size (mm)
4.5x9 5.5x11 6.5x10 6x13 6.5x13 8x13 8.5x13 8.5x17 9x13.5 9x16 9x18 10x15
Model No. Material Thickness (mm)
EP-19V Mild St/Al - - 6 6 - 6 - 6 6 - 6 6
EP-20S Mild St/Al - - 6 6 - 6 - 6 8 - 8 8
EP-1475V Mild St/Al 4.5 6 6 - 6 - 6 - 6 - - 6
EP-2110V Mild St/Al - - - - - - - - 6 6 - 9

Eliptical Hole Size (mm)
10x18 10x20 11.5x6.5 12x18 12x20 13x19 14x19.5 14x21 14x22 16.5x20 18.2x22
Model No. Material Thickness (mm)
EP-19V Mild St/Al - 6 6 6 - - 6 6 - - -
EP-20S Mild St/Al - 8 8 8 - - 8 8 - - -
EP-1475V Mild St/Al - - 6 - - - - - - - -
EP-2110V Mild St/Al 9 - 9 - 9 9 10 - 10 10 10

Refer following pages for punch and dies (sold separately)
