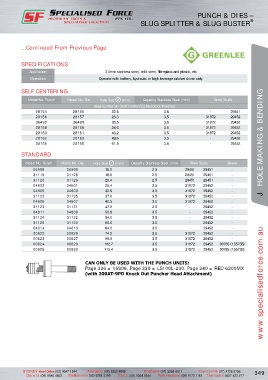

Page 361 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19
P. 361
PUNCH & DIES –
SLUG SPLITTER & SLUG BUSTER ®
...Continued From Previous Page
SPECIFICATIONS
Application 3.5mm stainless steel, mild steel, fibreglass and plastic, etc
Operation Operate with battery, hydraulic or high leverage ratchet driver only.
SELF CENTERING
Model No. Punch Model No. Die Hole Size (mm) Capacity Stainless Steel (mm) Draw Studs
Slug-Splitter SC (Self Centering) Knockout Punches
28154 28155 22.5 3.5 - 29451
28156 28157 28.3 3.5 31872 29452
36490 36489 30.5 3.5 31872 29452
28158 28159 34.6 3.5 31872 29452
28160 28161 43.2 3.5 31872 29452
28162 28163 49.6 3.5 - 29452
28165 28166 61.5 3.5 - 29452 J HOLE MAKING & BENDING
STANDARD
Model No. Punch Model No. Die Hole Size (mm) Capacity Stainless Steel (mm) Draw Studs Sleeve
04599 04598 16.2 2.5 29451 29451 -
31119 31128 18.6 2.5 29451 29451 -
31120 31129 20.4 2.5 29451 29451 -
04602 04601 25.4 3.5 31872 29452 -
04605 04603 32.5 3.5 31872 29452 -
31122 31135 37.0 3.5 31872 29452 -
04608 04607 40.5 3.5 31872 29452 -
31123 31131 47.0 3.5 - 29452 -
04611 04609 50.8 3.5 - 29452 -
31124 31132 54.0 3.5 - 29452 -
31125 31133 60.0 3.5 - 29452 -
04614 04613 64.0 3.5 - 29452 -
00622 00626 74.0 3.5 31872 29452 -
00623 00627 89.9 3.5 31872 29452 -
00624 00629 102.7 3.5 31872 29452 00785 (1557SS)
00625 00630 115.4 3.5 31872 29452 00785 (1557SS)
CAN ONLY BE USED WITH THE PUNCH UNITS;
Page 336 = 15906, Page 339 = LS100L-230, Page 340 = REC-6200MX
(with 200AT-9PD Knock Out Puncher Head Attachment) www.specialisedforce.com.au
