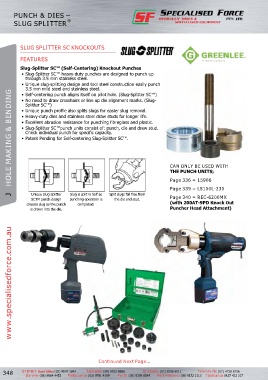

Page 360 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH & DIES –
SLUG SPLITTER ®

SLUG SPLITTER SC KNOCKOUTS

FEATURES

Slug-Splitter SC™ (Self-Centering) Knockout Punches
• Slug-Splitter SC™ heavy-duty punches are designed to punch up
through 3.5 mm stainless steel.
• Unique slug-splitting design and tool steel construction easily punch
3.5 mm mild steel and stainless steel.
J HOLE MAKING & BENDING
• Self-centering punch aligns itself on pilot hole. (Slug-Splitter SC™)
• No need to draw crosshairs or line up die alignment marks. (Slug-
Splitter SC™)
• Unique punch profile also splits slugs for easier slug removal.
• Heavy-duty dies and stainless steel draw studs for longer life.
• Excellent abrasion resistance for punching fibreglass and plastic.
• Slug-Splitter SC™punch units consist of: punch, die and draw stud.
Check individual punch for specific capacity.
• Patent Pending for Self-centering Slug-Splitter SC™.

CAN ONLY BE USED WITH
THE PUNCH UNITS;
Page 336 = 15906
Page 339 = LS100L-230
Unique Slug-Splitter Slug is split in half as Split slugs fall free from
SCTM punch design punching operation is the die and stud. Page 340 = REC-6200MX
creases slug as the punch completed. (with 200AT-9PD Knock Out
is drawn into the die. Puncher Head Attachment)

www.specialisedforce.com.au

Continued Next Page...
