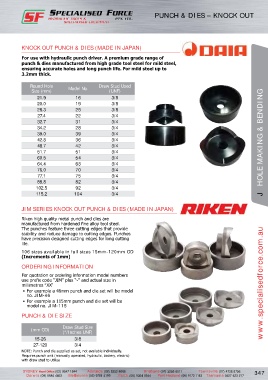

PUNCH & DIES – KNOCK OUT

KNOCK OUT PUNCH & DIES (MADE IN JAPAN)

For use with hydraulic punch driver. A premium grade range of
punch & dies manufactured from high grade tool steel for mild steel,
ensuring accurate holes and long punch life. For mild steel up to
3.2mm thick.

Round Hole Draw Stud Used
Size (mm) Model No. (UNF)
21.9 16 3/8
20.0 19 3/8
26.3 25 3/8
27.4 22 3/4
32.7 31 3/4
34.2 28 3/4
39.0 39 3/4
42.8 36 3/4
48.7 42 3/4 J HOLE MAKING & BENDING
51.7 51 3/4
60.5 54 3/4
64.4 63 3/4
76.0 70 3/4
77.1 75 3/4
88.8 82 3/4
102.5 92 3/4
115.2 104 3/4

JIM SERIES KNOCK OUT PUNCH & DIES (MADE IN JAPAN)

Riken high quality metal punch and dies are
manufactured from hardened fine alloy tool steel.
The punches feature three cutting edges that provide
stability and reduce damage to cutting edges. Punches
have precision designed cutting edges for long cutting
life.
106 sizes available in full sizes 15mm-120mm OD
(Increments of 1mm)

ORDERING INFORMATION
For quotation or ordering information model numbers
use prefix code “JIM” plus “-” and actual size in
millimetres “XX” www.specialisedforce.com.au
• For example a 46mm punch and die set will be model
no. JIM-46
• For example a 115mm punch and die set will be
model no. JIM-115
PUNCH & DIE SIZE

Draw Stud Size
(mm OD)
(“/Inches UNF)
15-26 3/8
27-120 3/4
NOTE: Punch and die supplied as set, not available individually.
Requires punch unit (manually operated, hydraulic, battery, electric)
with draw stud to utilise
