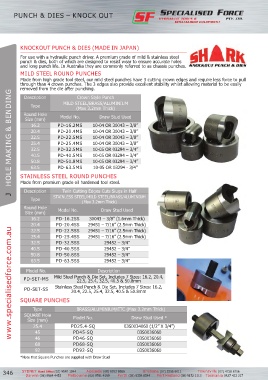

PUNCH & DIES – KNOCK OUT

KNOCKOUT PUNCH & DIES (MADE IN JAPAN)

For use with a hydraulic punch driver. A premium grade of mild & stainless steel
punch & dies, both of which are designed to resist wear to ensure accurate holes
and long punch life. In Australia they are commonly referred to as chassis punches.
MILD STEEL ROUND PUNCHES
Made from high grade tool steel, our mild steel punches have 3 cutting crown edges and require less force to pull
through than 4 crown punches. The 3 edges also provide excellent stability whilst allowing material to be easily
removed from the die after punching.
J HOLE MAKING & BENDING
Description Crown Style Punch
MILD STEEL/BRASS/ALUMINIUM
Type
(Max 3.2mm Thick)
Round Hole Model No. Draw Stud Used
Size (mm)
16.2 PD-16.2MS 10-04 OR 30043 – 3/8”
20.4 PD-20.4MS 10-04 OR 30043 – 3/8”
22.5 PD-22.5MS 10-04 OR 30043 – 3/8”
25.4 PD-25.4MS 10-04 OR 30043 – 3/8”
32.5 PD-32.5MS 10-05 OR 03294 – 3/4”
40.5 PD-40.5MS 10-05 OR 03294 – 3/4”
50.8 PD-50.8MS 10-05 OR 03294 – 3/4”
63.5 PD-63.5MS 10-05 OR 03294 - 3/4”
STAINLESS STEEL ROUND PUNCHES
Made from premium grade oil hardened tool steel.
Description Twin Cutting Edges Cuts Slugs in Half
STAINLESS STEEL/MILD STEEL/BRASS/ALUMINIUM
Type
(Max 3.2mm Thick)
Round Hole Model No. Draw Stud Used
Size (mm)
16.2 PD-16.2SS 30043 – 3/8” (1.6mm Thick)
20.4 PD-20.4SS 29451 – 7/16” (2.5mm Thick)
www.specialisedforce.com.au
22.5 PD-22.5SS 29451 – 7/16” (2.5mm Thick)
25.4 PD-25.4SS 29451 – 7/16” (2.5mm Thick)
32.5 PD-32.5SS 29452 – 3/4”
40.5 PD-40.5SS 29452 – 3/4”
50.8 PD-50.8SS 29452 – 3/4”
63.5 PD-63.5SS 29452 – 3/4”

Model No. Description
PD-SET-MS Mild Steel Punch & Die Set, Includes 7 Sizes: 16.2, 20.4,
22.5, 25.4, 32.5, 40.5 & 50.8mm
PD-SET-SS Stainless Steel Punch & Die Set, Includes 7 Sizes: 16.2,
20.4, 22.5, 25.4, 32.5, 40.5 & 50.8mm
SQUARE PUNCHES

Type BRASS/ALUMINIUM/ETC (Max 3.2mm Thick)
SQUARE Hole Model No. Draw Stud Used *
Size (mm)
25.4 PD25.4-SQ 03S0034060 (1/2” X 3/4”)
45 PD45-SQ 03S0036060
46 PD46-SQ 03S0036060
68 PD68-SQ 03S0036060
92 PD92-SQ 03S0036060
*Note that Square Punches are supplied with Draw Stud
