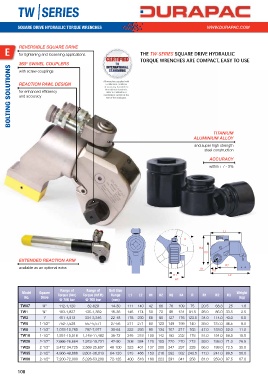

TW |SERIES




         SQUARE DRIVE HYDRAULIC TORQUE WRENCHES                                              WWW.DURAPAC.COM




   e      REvERSIBLE SqUARE DRIvE                              thE tW-SerIeS squarE DrivE hyDrauLic
          for tightening and loosening applications
                                                               torquE wrENchEs arE compact, Easy to usE
          360º SWIvEL COUPLERS                                 aND vErsatiLE.
      BOLTING SOLUTIONS  REACTION PAWL DESIGN  All wrenches supplied with   alloy construction means increased strength and durability
          with screw couplings
                                                               The titanium-aluminium alloy and super high strength steel

                                                a calibration certificate
                                                               while minimising weight. TW-Series torque wrenches are
                                               of accuracy, traceable to
                                                international standards.
          for enhanced efficiency
                                                               available in ¾" to 2 ½" square drive models, with a torque
                                                Refer to Calibration &
                                               Certification section at the
          and accuracy
                                                               range from 112 to 72,000 Newton Metres (82 to 53,280 ft/
                                                rear of the catalogue.
                                                               lbs). All models are fitted with a 360° swivel coupler and screw
                                                               couplings.
                                                                                                TITANIUM
                                                                                       ALUMINIUM ALLOY
                                                                                       and super high strength
                                                                                            steel construction
                                                                                              ACCURACY
                                                                                              within + / - 3%

















                                                                                                    L1
                                                                                   R
                                                                                         H4
                                                                                            H3
          EXTENDED REACTION ARM
                                                                                                     R2
          available as an optional extra                                                  R1   R3
                                                                              H1                      L2
                                                                               H2

                            Range of    Range of    Bolt Size
           Model   Square   Torque (Nm)   Torque (lbf.ft)   Range   L1  L2  H1  H2  H3  H4  R  R1  R2  R3  Weight
            No.    Drive                                                                                   (kg)
                           @ 700 bar   @ 700 bar   (mm)
          TW07      ¾"     112-1,120    82-829    14-30   111  140  42  66  76  109   75   20.5  68.3  25   1.8
          TW1       ¾"     183-1,837   135-1,359  16-36   145  174  50  72  96  131  91.5  26.0  85.0 33.5  2.5
          TW3       1"     451-4,512   334-3,346  22-48   178  230  68  95  127  176 123.5  34.0  114.0 40.0  5.0
          TW5      1-1/2"  752-7,528   557-5,571  27-56   211  271  80  123  149  199  140  39.0  137.0 46.5  8.0
          TW8      1-1/2"  1,078-10,780  797-7,977  30-64  222  293  90  134  167  217  165  47.0  153.0 52.0  11.0
          TW10     1-1/2"  1,551-15,516  1,148-11,482  36-72  246  318  100  142  182  232  178  51.0  154.0 58.5  15.0
          TW20     2-1/2"  2,666-26,664  1,973-19,731  42-90  308  384  120  183  220  270  213  59.0  186.0 71.0  26.5
          TW25     2-1/2"  3,472-34,725  2,569-25,697  48-100  323  401  137  200  247  297  228  66.0  199.0 72.5  35.0
          TW35     2-1/2"  4,866-48,666  3,601-36,013  64-120  373  466  153  216  282  332 243.5  77.0  241.0 89.5  50.0
          TW50     2-1/2"  7,200-72,000  5,328-53,280  72-125  400  516  160  223  291  341  258  81.0  259.0 97.5  87.0
