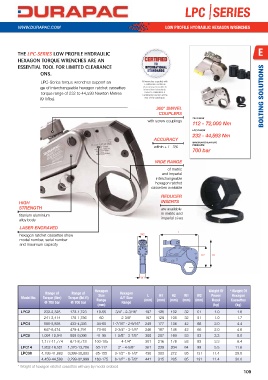

Page 109 - Durapac_2016
P. 109

LPC |SERIES




         WWW.DURAPAC.COM                                                  LOW PROFILE HYDRAULIC HEXAGON WRENCHES




                                                                                                                    e
         thE Lpc-SerIeS Low profiLE hyDrauLic
         hExaGoN torquE wrENchEs arE aN
         EssENtiaL tooL for LimitED cLEaraNcE
         appLicatioNs.
         The versatile LPC-Series torque wrenches support an    All wrenches supplied with
                                                                 a calibration certificate
         extensive range of interchangeable hexagon ratchet cassettes   of accuracy, traceable to
                                                                 international standards.
                                                                 Refer to Calibration &
         that deliver a torque range of 232 to 44,593 Newton Metres   Certification section at the
         (172 to 32,999 ft/lbs).                                 rear of the catalogue.                               BOLTING SOLUTIONS
                                                                      360° SWIvEL
                                                                        COUPLERS
                                                                                      TW RANGE
                                                                                      CAPACITY
                                                                   with screw couplings
                                                                                      X-XXX ton12 - 72,000 Nm
                                                                                      1
                                                                                      LPC RANGE
                                                                                      STROkE
                                                                                      232 - 44,593 Nm
                                                                                      XX-XXX mm
                                                                     ACCURACY
                                                                                      MAXIMUM OPERA
                                                                                      MAXIMUM OPERATING TING
                                                                                      PRESSURE
                                                                     within + / - 3%  PRESSURE
                                                                                      10 000 psi
                                                                                      700 bar
                                                                      WIDE RANGE
                                                                           of metric
                                                                         and imperial
                                                                      interchangeable
                                                                      hexagon ratchet
                                                                    cassettes available
                                                                         REDUCER
          hIGh                                                           INSERTS
          STRENGTh                                                       are available
          titanium aluminium                                             in metric and
          alloy body                                                     imperial sizes
          LASER ENGRAvED
                                                                                L
          hexagon ratchet cassettes show                       W2
          model number, serial number
          and maximum capacity

                                                                                          H2   H1




                                                               W1


                                           Hexagon                                            Weight Of    * Weight Of
                     Range of    Range of             Hexagon
                                                                                                        Hexagon
                                                                                        W2
                                                                             H2
                                                                                   W1
                                                                        H1
                                                                  L
                                             Size
          Model No.  Torque (Nm)   Torque (lbf.ft)   Range   A/F Size    (mm)  (mm)  (mm)  (mm)  (mm)  Power   Cassettes
                                                                                               Head
                     @ 700 bar  @ 700 bar              Range
                                            (mm)                                                (kg)      (kg)
          LPC2       232-2,328  172-1,723   19-55   3/4" - 2-3/16"  197  126  102  32    51     1.0       1.6
                     241-2,414  178-1,786    60        2-3/8"     197  129   105   32    51     1.0       1.7
          LPC4       585-5,858  433-4,335   34-65  1-7/16" - 2-9/16"  245  177  136  42  66     2.0       4.4
                     647-6,474  479-4,791   70-80   2-3/4" - 3-1/8"  246  187  146  42   66     2.0       4.6
          LPC8     1,094-10,941  809-8,096  41-95   1-5/8" - 3-7/8"  300  207  169  53   83     3.3       8.0
                   1,177-11,774  871-8,713  100-105    4-1/4"     301  216   178   53    83     3.3       8.4
          LPC14    1,852-18,521  1,370-13,706  50-117  2" - 4-5/8"  361  239  204  64    99     5.5      11.6
          LPC30    4,188-41,882  3,099-30,993  85-155  3-1/2" - 6-1/8"  430  303  272  85  131  11.4     29.0
                   4,459-44,593  3,299-32,999  160-175  6-1/2" - 6-7/8"  441  315  285  85  131  11.4    30.0
         * Weight of hexagon ratchet cassettes will vary by model ordered
