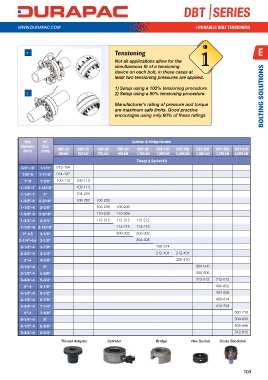

                                                                                   DBT |SERIES


         WWW.DURAPAC.COM                                                                HYDRAULIC BOLT TENSIONERS

                                                                                          i                         e


             1                                      tensioning
                                                    Not all applications allow for the
                                                    simultaneous fit of a tensioning
                                                    device on each bolt, in these cases at
                                                    least two tensioning pressures are applied.

                                                    1)  Setup using a 100% tensioning procedure
             2                                      2 )   Setup using a 50% tensioning procedure                      BOLTING SOLUTIONS

                                                    Manufacturer’s rating of pressure and torque
                                                    are maximum safe limits. Good practice
                                                    encourages using only 80% of these ratings






            Bolt    AF                                      Cylinder & Bridge Number
          Diameter   Size
           (inch)   (inch)  DBT-20  DBT-35   DBT-50  DBT-60   DBT-90   DBT-130  DBT-160  DBT-200  DBT-250  DBT-310
                           300 kN   525 kN  750 kN   900 kN   1,350 kN  1,950 kN  2,400 kN  3,000 kN  3,750 kN  4,650 kN
                                                              Thread & Socket Kit
           3/4"-10  1-1/4"  012-104
           7/8"-9  1-7/16"  014-107
            1"-8   1-5/8"  100-110  100-110
          1-1/8"-7 1-13/16"        102-113
          1-1/4"-7  2"             104-200
          1-3/8"-6  2-3/16"        106-203  106-203
          1-1/2"-6  2-3/8"                  108-206  108-206
          1-5/8"-8  2-9/16"                 110-209  110-209
          1-3/4"-5  2-3/4"                  112-212  112-212  112-212
          1-7/8"-8 2-15/16"                          114-215  114-215
           2"-4.5  3-1/8"                            200-302  200-302
          2-1/4"-4.5  3-1/2"                                  204-308
          2-1/2"-4  3-7/8"                                            208-314
          2-3/4"-4  4-1/4"                                            212-404  212-404
            3"-4   4-5/8"                                                      300-410
          3-1/4"-4  5"                                                                  304-500
          3-1/2"-4  5-3/8"                                                              308-506
          3-3/4"-4  5-3/4"                                                              312-512  312-512
            4"-4   6-1/8"                                                                        400-602
          4-1/4"-4  6-1/2"                                                                       404-608
          4-1/2"-4  6-7/8"                                                                       408-614
          4-3/4"-4  7-1/4"                                                                       412-704
            5"-4   7-5/8"                                                                                500-710
          5-1/4"-4  8"                                                                                   504-800
          5-1/2"-4  8-3/8"                                                                               508-806
          5-3/4"-4  8-3/4"                                                                               512-812
                            Thread Adaptor       Cylinder             Bridge          hex Socket   Cross Sectional
