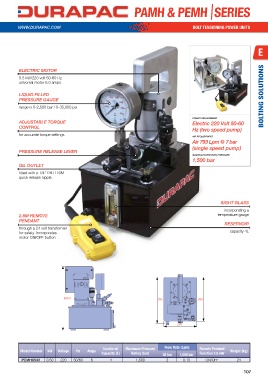

PAMH & PEMH |SERIES




         WWW.DURAPAC.COM                                                               BOLT TENSIONING POWER UNITS




                                                                                                                    e




          ELECTRIC MOTOR
          0.5 kW/220 volt 50-60 Hz
          universal motor 6.0 amps


          LIqUID FILLED                                                                                               BOLTING SOLUTIONS
          PRESSURE GAUGE
          range is 0-2,500 bar / 0-35,000 psi

                                                                                      POWER REqUIREMENT
          ADJUSTABLE TORqUE                                                           Electric 220 volt 50-60
          CONTROL
                                                                                      hz (two speed pump)
          for accurate torque settings
                                                                                      AIR REqUIREMENT
                                                                                      Air 793 Lpm @ 7 bar
                                                                                      (single speed pump)
          PRESSURE RELEASE LEvER
                                                                                      MAXIMUM OPERATING PRESSURE
                                                                                      1,500 bar
          OIL OUTLET
          fitted with a 1/4" DBT116M
          quick release nipple





                                                                                                   SIGhT GLASS

                                                                                                     incorporating a
          2.8M REMOTE                                                                             temperature gauge
          PENDANT
                                                                                                     RESERvOIR
          through a 24 volt transformer
          for safety. Incorporates                                                                     capacity 4L
          motor ON/OFF button















                             408.5                                     292               280





                                                                                210





                                               Usable oil   Maximum Pressure   Flow Rate (Lpm)  Remote Pendant
          Model Number  kW  Voltage  Hz  Amps                                                          Weight (kg)
                                              Capacity (L)  Rating (bar)  30 bar  1,500 bar  Function 2.8 mtr
           PEMH0543   0.50  220   50/60  6        4          1,500         2      0.13      ON/OFF        24

                                                                                                             107
