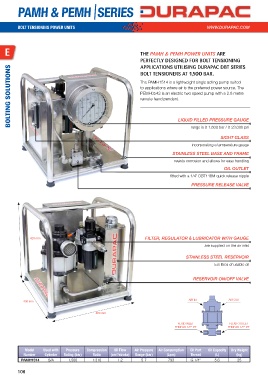

PAMH & PEMH |SERIES




         BOLT TENSIONING POWER UNITS                                                         WWW.DURAPAC.COM




   e                                                           thE paMH & peMH poWer unItS arE

                                                               pErfEctLy DEsiGNED for boLt tENsioNiNG
                                                               appLicatioNs utiLisiNG Durapac Dbt sEriEs
      BOLTING SOLUTIONS                                        The PAMH1514 is a lightweight single acting pump suited
                                                                                       5
                                                               boLt tENsioNErs at 1, 00 bar.

                                                               to applications where air is the preferred power source. The
                                                               PEMH0543 is an electric two speed pump with a 2.8 metre
                                                               remote hand pendant.



                                                                                LIqUID FILLED PRESSURE GAUGE

                                                                                      range is 0-1,600 bar / 0-23,000 psi
                                                                                                   SIGhT GLASS

                                                                                      incorporating a temperature gauge
                                                                              STAINLESS STEEL BASE AND FRAME
                                                                              resists corrosion and allows for easy handling
                                                                                                     OIL OUTLET
                                                                             fitted with a 1/4" DBT116M quick release nipple
                                                                                      PRESSURE RELEASE vALvE









                                                                                         WATER/OIL
                                                                                         OUTLET


              420 mm                                              FILTER, REGULATOR & LUBRICATOR WITh GAUGE           WATER/OIL
                                                                      WATER/OIL
                                                                      OUTLET                                          INLET
                                                                                            are supplied on the air inlet
                                                                            300
                                                                                    STAINLESS STEEL RESERvOIR     AIR COUPLER
                                                                                                5.6 litres of usable oil

                                                                                               500
                                                                                       RESERvOIR ON/OFF vALvE



                                                                                     AIR IN            AIR OUT
           400 mm

                                            400 mm

                                                                                FLUID INLET            FLUID OUTLET
                                                                               THREAD 1/2"-PT         THREAD 1/2"-PT




            Model   Used with   Pressure   Compression   Oil Flow    Air Pressure   Air Consumption   Oil Port   Oil Capacity   Dry Weight
            Number   Cylinder  Rating (bar)  Ratio  (cm /stroke)  Range (bar)  (Lpm)  Thread     (L)      (kg)
                                                     3
          PAMH1514    S/A      1,500      1:310      1.2        5-7         793       G 1/4"    5.6       25
