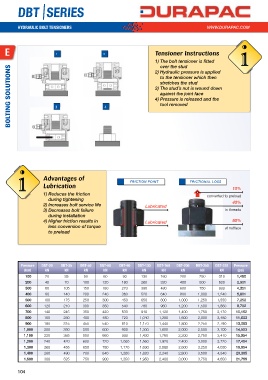

         DBT |SERIES                                                                                        ?



         HYDRAULIC BOLT TENSIONERS                                                           WWW.DURAPAC.COM




   e                      1                    2                      tensioner instructions                i

                                                                      1)  The bolt tensioner is fitted
                                                                        over the stud
      BOLTING SOLUTIONS  ?  3                  4                      3)  The stud’s nut is wound down
                                                                      2)  hydraulic pressure is applied
                                                                        to the tensioner which then
                                                                        stretches the stud

                                                                        against the joint face
                                                                      4)  Pressure is released and the
                                                                        tool removed



         !










         i          advantages of                          FRICTION POINT            FRICTIONAL LOSS



                    lubrication
                                                                                                        10%
                    1)  Reduces the friction                                                 converted to preload
                       during tightening
                    2) Increases bolt service life                Lubricated                            40%
                    3)  Decreases bolt failure                                                       in threads
                       during installation
                    4)  higher friction results in                Lubricated                            50%
                       less conversion of torque                                                     at nutface
                       to preload







          Pressure   DBT-20  DBT-35  DBT-50  DBT-60   DBT-90  DBT-130  DBT-160  DBT-200  DBT-250  DBT-310  Pressure
            (bar)    kN       kN      kN       kN       kN      kN       kN      kN       kN       kN     (psi)
            100      20       35      50       60       90      130     160      200      250     310     1,450
            200      40       70      100     120      180      260     320      400      500     620     2,901
            300      60      105      150     180      270      390     480      600      750     930     4,351
            400      80      140      200     240      360      520     640      800     1,000    1,240   5,801
            500      100     175      250     300      450      650     800     1,000    1,250    1,550   7,252
            600      120     210      300     360      540      780     960     1,200    1,500    1,860   8,702
            700      140     245      350     420      630      910     1,120   1,400    1,750    2,170   10,152
            800      160     280      400     480      720     1,040    1,280   1,600    2,000    2,480   11,603
            900      180     315      450     540      810     1,170    1,440   1,800    2,250    2,790   13,053
            1,000    200     350      500     600      900     1,300    1,600   2,000    2,500    3,100   14,503
            1,100    220     385      550     660      990     1,430    1,760   2,200    2,750    3,410   15,954
            1,200    240     420      600     720     1,080    1,560    1,920   2,400    3,000    3,720   17,404
            1,300    260     455      650      780    1,170    1,690    2,080   2,600    3,250    4,030   18,854
            1,400    280     490      700      840    1,260    1,820    2,240   2,800    3,500    4,340   20,305
            1,500    300     525      750      900    1,350    1,950    2,400   3,000    3,750    4,650   21,755
