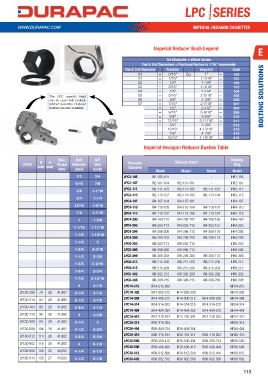

LPC |SERIES




         WWW.DURAPAC.COM                                                               IMPERIAL HEXAGON CASSETTES



                                                                     Imperial Reducer Bush Legend
                                                                                                                    e

                                                                           1st Character = Whole Inches
                                                                2nd & 3rd Characters = Fractional Inches in 1/16" increments
                                                        2nd & 3rd Character  Fraction     Imperial      Code
                                                              00        =   0/16"   Eg.     1"     =     100
                                                              01        =   1/16"         1-1/16"  =     101
                                                              02        =   1/8"           1-1/8"  =     102
                                                              03        =   3/16"         1-3/16"  =     103
                                                              04        =   1/4"           1-1/4"  =     104
                       The LPC wrench head                    05        =   5/16"         2-5/16"  =     205          BOLTING SOLUTIONS
                       can  be used  with  multiple           06        =   3/8"           2-3/8"  =     206
                       ratchet cassettes. Reducer             07        =   7/16"         2-7/16"  =     207
                       bushes are also available.             08        =   1/2"           2-1/2"  =     208
                                                              09        =   9/16"         3-9/16"  =     309
                                                              10        =   5/8"           3-5/8"  =     310
                                                              11        =  11/16"         3-11/16"  =    311
                                                              12        =   3/4"           3-3/4"  =     312
                                                              13        =  13/16"         4-13/16"  =    413
                                                              14        =   7/8"           4-7/8"  =     414
                                                              15        =  15/16"         4-15/16"  =    415
                                                                 Imperial Hexagon Reducer Bushes Table


 Bolt   A/F    Max.    Max.    Max.    Max.    Max.    Bolt   A/F                                       Holding
 Diameter    Size    LPC2  R   A    Torque   LPC4  R   A    Torque   LPC8  R   A    Torque   LPC14  R   A    Torque   LPC30  R    A    Torque   Diameter    Size    Hexagon    Reducer Insert   Ring
 (inch)  (inch)  (mm) (mm)  (Nm)  (mm) (mm)  (Nm)  (mm) (mm)  (Nm)  (mm) (mm)  (Nm)  (mm) (mm)  (Nm)  (inch)  (inch)  Cassette  Model  Model  Model  Model
 1/2  3/4  *  LPC2-012 27  16  1,663  1/2  3/4          LPC2-105     IR2-105-101   -           -        IHR2-105
 9/16  7/8  *  LPC2-014 27  14  1,663  9/16  7/8        LPC2-107     IR2-107-104  IR2-107-101  -        IHR2-107
 5/8  1-1/16  LPC2-101 27  11  1,929  5/8  1-1/16       LPC2-111     IR2-111-103  IR2-111-105  IR2-111-101  IHR2-111
                                                        LPC2-113     IR2-113-107  IR2-113-105  IR2-113-104  IHR2-113
 3/4  1-1/4  *  LPC2-104 29  12  2,328  3/4  1-1/4
                                                        LPC4-107     IR4-107-104  IR4-107-101  -        IHR4-107
 13/16  1-5/16  *  LPC2-105 29  11  2,328  13/16  1-5/16  LPC4-110   IR4-110-105  IR4-110-104  IR4-110-101  IHR4-110
 7/8  1-7/16  *  LPC2-107 31  10  2,328  LPC4-107  36  15  2,510  7/8  1-7/16  LPC4-113  IR4-113-107  IR4-113-105  IR4-113-104  IHR4-113
 1  1-5/8  *  LPC2-110 34  10  2,328  LPC4-110  39  15  5,021  LPC8-110  46  22  8,128  1  1-5/8  LPC4-200  IR4-200-110  IR4-200-107  IR4-200-105  IHR4-200
 1-1/16  1-11/16  *  LPC2-111 34  10  2,328  LPC4-111  39  15  5,858  LPC8-111  46  22  10,941  1-1/16  1-11/16  LPC4-203  IR4-203-113  IR4-203-110  IR4-203-107  IHR4-203
                                                        LPC4-206     IR4-206-200  IR4-206-113  IR4-206-110  IHR4-206
 1-1/8  1-13/16  *  LPC2-113 37  10  2,328  LPC4-113  42  15  5,858  LPC8-113  46  19  10,941  1-1/8  1-13/16
                                                        LPC4-209     IR4-209-203  IR4-209-200  IR4-209-113  IHR4-209
 1-1/4  2  *  LPC2-200 40  11  2,328  LPC4-200  44  15  5,858  LPC8-200  46  17  10,941  LPC14-200 60  31  14,552  1-1/4  2  LPC8-203  IR8-203-113  IR8-203-110  -  IHR8-203
 1-3/8  2-3/16  *  LPC2-203 43  11  2,328  LPC4-203  46  14  5,858  LPC8-203  50  18  10,941  LPC14-203 60  28  18,521  1-3/8  2-3/16  LPC8-206  IR8-206-200  IR8-206-113  -  IHR8-206
 1-1/2  2-3/8  *  LPC2-206 46  11  2,414  LPC4-206  50  15  5,858  LPC8-206  52  17  10,941  LPC14-206 60  25  18,521  1-1/2  2-3/8  LPC8-209  IR8-209-203  IR8-209-200  IR8-209-113  IHR8-209
 1-5/8  2-9/16  *  LPC4-209  53  15  5,858  LPC8-209  55  17  10,941  LPC14-209 60  22  18,521  1-5/8  2-9/16  LPC8-212  IR8-212-206  IR8-212-203  IR8-212-200  IHR8-212
                                                        LPC8-215     IR8-215-209  IR8-215-206  IR8-215-203  IHR8-215
 1-3/4  2-3/4  *  LPC4-212  56  15  6,474  LPC8-212  58  17  10,941  LPC14-212 60  19  18,521  1-3/4  2-3/4
                                                        LPC8-302     IR8-302-212  IR8-302-209  IR8-302-206  IHR8-302
 1-7/8  2-15/16  *  LPC4-215  59  15  6,474  LPC8-215  60  17  10,941  LPC14-215 63  19  18,521  1-7/8  2-15/16  LPC8-308  IR8-308-215  IR8-308-215  IR8-308-209  IHR8-308
 2  3-1/8  *  LPC4-302  61  15  6,474  LPC8-302  63  16  10,941  LPC14-302 66  19  18,521  2  3-1/8  LPC14-215  IR14-215-209  -  -  IHR14-215
 2-1/4  3-1/2  *  LPC8-308  66  16  10,941  LPC14-308 69  19  18,521  LPC30-308  78  28  41,882  2-1/4  3-1/2  LPC14-302  IR14-302-212  IR14-302-209  -  IHR14-302
 2-1/2  3-7/8  *  LPC8-314  71  16  10,941  LPC14-314 74  19  18,521  LPC30-314  83  28  41,882  2-1/2  3-7/8  LPC14-308  IR14-308-215  IR14-308-212  IR14-308-209  IHR14-308
                                                        LPC14-314   IR14-314-302  IR14-314-215  IR14-314-212  IHR14-314
 2-3/4  4-1/4  *  LPC14-404 80  19  18,521  LPC30-404  89  28  41,882  2-3/4  4-1/4
                                                        LPC14-404   IR14-404-304  IR14-404-302  IR14-404-215  IHR14-404
 3  4-5/8  *  LPC14-410 87  20  18,521  LPC30-410  95  28  41,882  3  4-5/8  LPC14-410  IR14-410-404  IR14-410-304  IR14-410-302  IHR14-410
 3-1/4  5  LPC30-500  101  29  41,882  3-1/4  5         LPC30-314   IR30-314-304   -           -       IHR30-314
 3-1/2  5-3/8  LPC30-506  104  26  41,882  3-1/2  5-3/8  LPC30-404  IR30-404-314  IR30-404-304  -      IHR30-404
 3-3/4  5-3/4  LPC30-512  110  26  41,882  3-3/4  5-3/4  LPC30-410  IR30-410-404  IR30-410-314  IR30-410-304  IHR30-410
                                                        LPC30-500   IR30-500-410  IR30-500-404  IR30-500-314  IHR30-500
 4  6-1/8  LPC30-602  116  26  41,882  4  6-1/8
                                                        LPC30-506   IR30-506-500  IR30-506-410  IR30-506-404  IHR30-506
 4-1/4  6-1/2  LPC30-608  128  33  44,593  4-1/4  6-1/2  LPC30-512  IR30-512-506  IR30-512-500  IR30-512-410  IHR30-512
 4-1/2  6-7/8  LPC30-614  128  27  44,593  4-1/2  6-7/8  LPC30-602  IR30-602-512  IR30-602-506  IR30-602-500  IHR30-602
