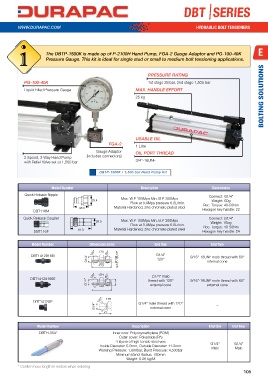

 !        ?                                                                        DBT |SERIES


         WWW.DURAPAC.COM                                                                HYDRAULIC BOLT TENSIONERS

 i        i          The DBTP-1500k is made up of P-2100h hand Pump, FGA-2 Gauge Adaptor and PG-100-40k             e




                     Pressure Gauge. This kit is ideal for single stud or small to medium bolt tensioning applications.
                                                                                                                      BOLTING SOLUTIONS
                                                                   PRESSURE RATING
            PG-100-40k                                             1st stage 28 bar, 2nd stage 1,500 bar
            Liquid Filled Pressure Gauge                     MAX. hANDLE EFFORT
                                                             25 kg










                                                             USABLE OIL
                                                 FGA-2       1 Litre
            P-2100h                         Gauge Adaptor    OIL PORT ThREAD
            2 Speed, 2 Way Hand Pump    (includes connectors)
            with Relief Valve set at 1,500 bar               3/4"-16UNF

                                             DBTP-1500k / 1,500 bar hand Pump kit


                        Model Number                            Description                    Dimensions
            Quick Release Nipple                                                              Connect: G1/4"
                                                       Max. W.P 150Mpa Min. B.P 300Mpa
                                          25.4                                                 Weight: 60g
                                                           Flow at 0.4Mpa pressure 6.0L/min.     Rec. Torque: 40-50Nm
                                    38.0            Material Hardened, zinc chromate plated steel    Hexagon key handle: 22
                DBT116M
           Quick Release Coupler                                                              Connect: G1/4"
                                            28.0       Max. W.P 150Mpa Min. B.P 300Mpa         Weight: 165g
                                                           Flow at 0.4Mpa pressure 6.0L/min.    Rec. Torque: 40-50Nm
                DBT116F             61.3            Material Hardened, zinc chromate plated steel   Hexagon key handle: 24

               Model Number              Dimension (mm)               End One                  End Two
                                          120°  17H  60°
               DBT14129166I                                           G1/4"           9/16"-18UNF male thread with 60°
                                        G1/4"        9/16"-18UNF       120°                  internal cone
                                             43.5
                                          120°  17H  60°            G1/4" male
              DBT14129166E
                                       G1/4"                       thread with 120°   9/16"-18UNF male thread with 60°
                                                                    external cone
                                                                                             external cone

                DBT1412SP                    120°  17H         G1/4" male thread with 120°
                                           G1/4"                    external cone                –
                                               27


                  Model Number                              Description                       End One   End Two
                  DBTH-05A*                        Inner core: Polyoxymethylene (POM)
                                                      Outer cover: Polyamide (PA)
                                                    4 layers of high-tensile steel wire        G1/4"     G1/4"
                                              Inside Diameter: 5.0mm, Outside Diameter: 11.2mm
                                             Working Pressure: 1,800bar, Burst Pressure: 4,500bar  Male  Male
                                                     Minimum Bend Radius: 150mm
                                                         Weight: 0.26 kg/M
         * Confirm hose length in meters when ordering
