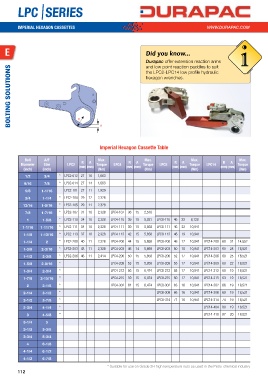

         LPC |SERIES                                                                                        ?



         IMPERIAL HEXAGON CASSETTES                                                          WWW.DURAPAC.COM




   e                                                              Did you know...                           i

                                                                  Durapac offer extension reaction arms
                                                                  and low point reaction paddles to suit
      BOLTING SOLUTIONS             R
                                                                  the LPC2-LPC14 low profile hydraulic
                                                                  hexagon wrenches.











                                              A




                                             Imperial Hexagon Cassette Table


            Bolt     A/F                     Max.                Max.                 Max.                 Max.                                   Max.    Bolt    A/F
          Diameter    Size     LPC2  R   A    Torque   LPC4  R   A    Torque   LPC8  R   A    Torque   LPC14  R   A    Torque     LPC30   R    A    Torque   Diameter    Size
           (inch)   (inch)          (mm) (mm)  (Nm)      (mm) (mm)  (Nm)     (mm) (mm)  (Nm)       (mm) (mm)  (Nm)                       (mm) (mm)  (Nm)  (inch)  (inch)
            1/2      3/4   *  LPC2-012 27  16  1,663                                                                                                      1/2     3/4
            9/16     7/8   *  LPC2-014 27  14  1,663                                                                                                      9/16    7/8
            5/8    1-1/16     LPC2-101 27  11  1,929                                                                                                      5/8    1-1/16
            3/4     1-1/4  *  LPC2-104 29  12  2,328                                                                                                      3/4    1-1/4
           13/16   1-5/16  *  LPC2-105 29  11  2,328                                                                                                     13/16   1-5/16
            7/8    1-7/16  *  LPC2-107 31  10  2,328  LPC4-107  36  15  2,510                                                                             7/8    1-7/16
             1      1-5/8  *  LPC2-110 34  10  2,328  LPC4-110  39  15  5,021  LPC8-110  46  22  8,128                                                     1     1-5/8
           1-1/16  1-11/16  *  LPC2-111 34  10  2,328  LPC4-111  39  15  5,858  LPC8-111  46  22  10,941                                                 1-1/16  1-11/16
           1-1/8   1-13/16  *  LPC2-113 37  10  2,328  LPC4-113  42  15  5,858  LPC8-113  46  19  10,941                                                 1-1/8   1-13/16
           1-1/4     2     *  LPC2-200 40  11  2,328  LPC4-200  44  15  5,858  LPC8-200  46  17  10,941  LPC14-200 60  31  14,552                        1-1/4     2
           1-3/8   2-3/16  *  LPC2-203 43  11  2,328  LPC4-203  46  14  5,858  LPC8-203  50  18  10,941  LPC14-203 60  28  18,521                        1-3/8   2-3/16
           1-1/2    2-3/8  *  LPC2-206 46  11  2,414  LPC4-206  50  15  5,858  LPC8-206  52  17  10,941  LPC14-206 60  25  18,521                        1-1/2   2-3/8
           1-5/8   2-9/16  *                      LPC4-209  53  15  5,858  LPC8-209  55  17  10,941  LPC14-209 60  22  18,521                            1-5/8   2-9/16
           1-3/4    2-3/4  *                      LPC4-212  56  15  6,474  LPC8-212  58  17  10,941  LPC14-212 60  19  18,521                            1-3/4   2-3/4
           1-7/8   2-15/16  *                     LPC4-215  59  15  6,474  LPC8-215  60  17  10,941  LPC14-215 63  19  18,521                            1-7/8   2-15/16
             2      3-1/8  *                      LPC4-302  61  15  6,474  LPC8-302  63  16  10,941  LPC14-302 66  19  18,521                              2     3-1/8
           2-1/4    3-1/2  *                                           LPC8-308  66  16  10,941  LPC14-308 69  19  18,521        LPC30-308  78  28  41,882  2-1/4  3-1/2
           2-1/2    3-7/8  *                                           LPC8-314  71  16  10,941  LPC14-314 74  19  18,521        LPC30-314  83  28  41,882  2-1/2  3-7/8
           2-3/4    4-1/4  *                                                                LPC14-404 80  19  18,521             LPC30-404  89  28  41,882  2-3/4  4-1/4

             3      4-5/8  *                                                                LPC14-410 87  20  18,521             LPC30-410  95  28  41,882  3    4-5/8
           3-1/4     5                                                                                                           LPC30-500  101  29  41,882  3-1/4  5
           3-1/2    5-3/8                                                                                                        LPC30-506  104  26  41,882  3-1/2  5-3/8
           3-3/4    5-3/4                                                                                                        LPC30-512  110  26  41,882  3-3/4  5-3/4
             4      6-1/8                                                                                                        LPC30-602  116  26  41,882  4   6-1/8
           4-1/4    6-1/2                                                                                                        LPC30-608  128  33  44,593  4-1/4  6-1/2
           4-1/2    6-7/8                                                                                                        LPC30-614  128  27  44,593  4-1/2  6-7/8
                                                 * Suitable for use on Grade 2H high temperature nuts as used in the Petro-chemical industry
