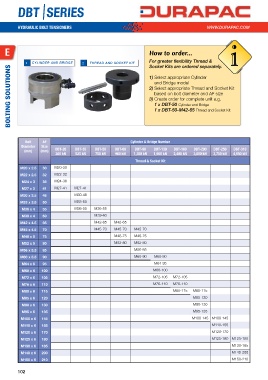

Page 102 - Durapac_2016
P. 102

!
         DBT |SERIES                                                                                   ?



         HYDRAULIC BOLT TENSIONERS                                                           WWW.DURAPAC.COM




   e                                                               How to order...                     i


            1  CYLINDER AND BRIDGE    2  ThREAD AND SOCkET kIT     For greater flexibility Thread &
                                                                   Socket kits are ordered separately.
      BOLTING SOLUTIONS                                            2)  Select appropriate Thread and Socket Kit
                                                                   1)  Select appropriate Cylinder
                                                                      and Bridge model

                                                                      based on bolt diameter and AF size
                                                                   3)  Create order for complete unit e.g.
                                                                      1 x DBT-50 Cylinder and Bridge
                                                                      1 x DBT-50-M42-65 Thread and Socket Kit







            Bolt    AF                                     Cylinder & Bridge Number
           Diameter   Size
            (mm)   (mm)   DBT-20  DBT-35   DBT-50   DBT-60   DBT-90  DBT-130  DBT-160  DBT-200  DBT-250  DBT-310
                          300 kN   525 kN  750 kN   900 kN  1,350 kN  1,950 kN  2,400 kN  3,000 kN  3,750 kN  4,650 kN
                                                             Thread & Socket Kit
          M20 x 2.5  30  M20-30
          M22 x 2.5  32  M22-32
           M24 x 3  36   M24-36
           M27 x 3  41   M27-41   M27-41
          M30 x 3.5  46           M30-46
          M33 x 3.5  50           M33-50
           M36 x 4  55            M36-55   M36-55
           M39 x 4  60                     M39-60
          M42 x 4.5  65                    M42-65   M42-65
          M45 x 4.5  70                    M45-70   M45-70   M45-70
           M48 x 5  75                              M48-75   M48-75
           M52 x 5  80                              M52-80   M52-80
          M56 x 5.5  85                                      M56-85
          M60 x 5.5  90                                      M60-90  M60-90
           M64 x 6  95                                               M64-95
           M68 x 6  100                                              M68-100
           M72 x 6  105                                              M72-105  M72-105
           M76 x 6  110                                              M76-110  M76-110
           M80 x 6  115                                                       M80-115  M80-115
           M85 x 6  120                                                                M85-120
           M90 x 6  130                                                                M90-130
           M95 x 6  135                                                                M95-135
          M100 x 6  145                                                               M100-145 M100-145
          M110 x 6  155                                                                        M110-155
          M120 x 6  170                                                                        M120-170
          M125 x 6  180                                                                        M125-180 M125-180
          M130 x 6  185                                                                                 M130-185
          M140 x 6  200                                                                                 M140-200
          M150 x 6  210                                                                                 M150-210
