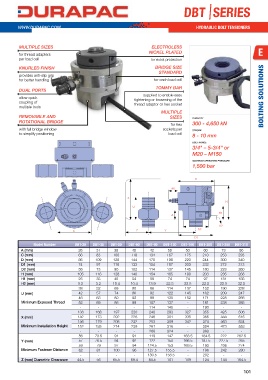

DBT |SERIES




         WWW.DURAPAC.COM                                                                HYDRAULIC BOLT TENSIONERS



          MULTIPLE SIZES                                            ELECTROLESS
                                                                   NICkEL PLATED                                    e
          for thread adapters
          per load cell                                             for extra protection
          kNURLED FINISh                                              BRIDGE SIZE
                                                                        STANDARD
          provides anti-slip grip
          for better handling                                        for each load cell
                                                                      TOMMY BAR
          DUAL PORTS
                                                                 supplied to enable easy
          allow quick                                        tightening or loosening of the                           BOLTING SOLUTIONS
          coupling of                                        thread adaptor or hex socket
          multiple tools
                                                                         MULTIPLE
          REMOvABLE AND                                                     SIZES     CAPACITY
          ROTATIONAL BRIDGE
                                                                             for hex   300 - 4,650 kN
          with full bridge window                                        sockets per   STROkE
          to simplify positioning                                           load cell  8 - 10 mm

                                                                                      BOLT RANGE
                                                                                      3/4" – 5-3/4" or
                                                                                      M20 – M150
                                                                                      MAXIMUM OPERATING PRESSURE
                                                                                      1,500 bar


                                                                                        D

                                                                             48
                                                          X
                                                                                                     H
                                                            U
                                                                                                  H1
                                                                             A

                                                                                                  H2
                                 C                            Z           Y              D2
                                                                                       D1
                Model Number      DBT-20  DBT-35  DBT-50  DBT-60  DBT-90  DBT-130  DBT-160  DBT-200  DBT-250  DBT-310
          A (mm)                    26      31      38      40      42      50      50     60      73      86
          C (mm)                    66      83     100     118     134     167     175     210     253     293
          D (mm)                    86     109     128     144     170     198     220     244     300     340
          D1 (mm)                   74      97     116     133     154     187     203     232     272     313
          D2 (mm)                   56      73      90     102     114     137     145     180     223     260
          H (mm)                   105     116     128     140     154     185     190     203     235     268
          H1 (mm)                   25      35      45      54      59      74      74     97      131     156
          H2 (mm)                   5.2     5.2    10.4    10.4    13.9    22.5    22.5    22.5    22.5    32.5
                                    38      52      69      80      86     114     137     152     190     238
          U (mm)                    42      57      74      86      92     122     145     162     209     247
                                    46      63      80      92      99     130     152     171     228     266
          Minimum Exposed Thread    52      69      86      99     107     137      -      181     238     285
                                     -      -       -       -      114     145      -      190      -       -
                                    138    168     197     220     240     293     327     355     425     506
          X (mm)                    142    173     202     226     246     301     335     365     444     515
                                    146    179     208     232     253     309     342     374     463     534
          Minimum Installation Height  152  185    214     239     261     316      -      384     473     553
                                     -       -      -       -      268     324      -      393      -       -
                                    56     73.5     91      91     119     147    163.5   184.5    222    262.5
           Y (mm)                   57     76.5     94      92     122     150     166.5  187.5   227.5    265
                                    59      79      97      94     124.5   153     169.5   193     236     274
           Minimum Fastener Distance  62    81     100      96     127.5   155.5    -      196     242     280
                                     -       -      -       -      130.5   158.5    -      202      -       -
           Z (mm) Diametric Clearance  44.5  56    65.5    69.4    84.5    101     109     124     144    164.5
