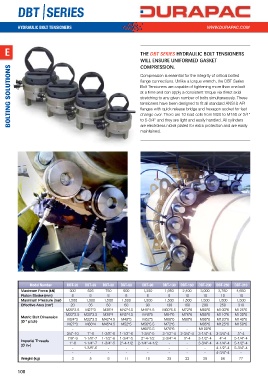

DBT |SERIES




         HYDRAULIC BOLT TENSIONERS                                                           WWW.DURAPAC.COM




   e                                                           thE DBt SerIeS hyDrauLic boLt tENsioNErs

                                                               wiLL ENsurE uNiformED GasKEt
                                                               comprEssioN.
      BOLTING SOLUTIONS                                        flange connections. Unlike a torque wrench, the DBT Series
                                                               Compression is essential for the integrity of critical bolted

                                                               Bolt Tensioners are capable of tightening more than one bolt
                                                               at a time and can apply a consistent torque via direct axial
                                                               stretching to any given number of bolts simultaneously. These
                                                               tensioners have been designed to fit all standard ANSI & API
                                                               flanges with quick release bridge and hexagon socket for fast
                                                               change over. There are 10 load cells from M20 to M150 or 3/4"
                                                               to 5-3/4" and they are light and easily handled. All cylinders
                                                               are electroless nickel plated for extra protection and are easily
                                                               maintained.








































              Model Number     DBT-20  DBT-35  DBT-50  DBT-60   DBT-90   DBT-130  DBT-160  DBT-200  DBT-250  DBT-310
          Maximum Force (kN)    300     525     750     900      1,350    1,950   2,400   3,000   3,750   4,650
          Piston Stroke (mm)     8       8       8       8        8         8      10      10      10      10
          Maximum Pressure (bar)  1,500  1,500  1,500  1,500     1,500    1,500   1,500   1,500   1,500   1,500
                        2
          Effective Area (cm )  20      35      50      60        90       130     160     200     250     310
                              M20*2.5  M27*3   M36*4  M42*4.5   M45*4.5  M60*5.5  M72*6   M80*6  M100*6  M125*6
                              M22*2.5  M30*3.5  M39*4  M45*4.5  M48*5     M64*6   M76*6   M85*6  M110*6  M130*6
          Metric Bolt Dimension    M24*3  M33*3.5  M42*4.5  M48*5  M52*5  M68*6   M80*6   M90*6  M120*6  M140*6
          (Ø * pitch)
                               M27*3   M36*4  M45*4.5  M52*5    M56*5.5   M72*6     -     M95*6  M125*6  M150*6
                                 -       -       -       -      M60*5.5   M76*6     -    M100*6     -       -
                               3/4"-10  1"-8  1-3/8"-6  1-1/2"-6  1-3/4"-5  2-1/2"-4  2-3/4"-4  3-1/4"-4  3-3/4"-4  5"-4
                               7/8"-9  1-1/8"-7  1-1/2"-6  1-3/4"-5  2"-4-1/2  2-3/4"-4  3"-4  3-1/2"-4  4"-4  5-1/4"-4
          Imperial Threads      1"-8  1-1/4"-7  1-3/4"-5  2"-4-1/2  2-1/4"-4-1/2  -  -   3-3/4"-4  4-1/4"-4  5-1/2"-4
          (Ø in-)
                                 -    1-3/8"-6   -       -        -         -       -       -    4-1/2"-4  5-3/4"-4
                                 -       -       -       -        -         -       -       -    4-3/4"-4   -
          Weight (kg)            3       5       8      11        18       25      33      39      56      77
