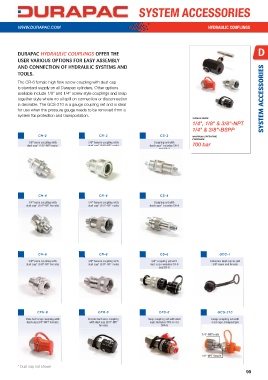

Page 99 - Durapac_2016
P. 99

|SYSTEM ACCESSORIES




         WWW.DURAPAC.COM                                                                     HYDRAULIC COUPLINGS




                                                                                                                    D
         Durapac HyDrauLIc coupLIngS offEr thE
         usEr various optioNs for Easy assEmbLy
         aND coNNEctioN of hyDrauLic systEms aND
         tooLs.
         The CR-6 female high flow screw coupling with dust cap
         is standard supply on all Durapac cylinders. Other options
         available include 1/8" and 1/4" screw style couplings and snap
         together style where no oil spill on connection or disconnection                                             SYSTEM ACCESSORIES
         is desirable. The GCS-210 is a gauge coupling set and is ideal
         for use when the pressure gauge needs to be removed from a
         system for protection and transportation.
                                                                                      ThREAD SIZES
                                                                                      1/4", 1/8" & 3/8"-NPT
                                                                                      1/4" & 3/8"-BSPP
                  Ch-2                       CR-2                       CS-2          MAXIMUM OPERATING
                                                                                      PRESSURE
              1/8" male coupling with    1/8" female coupling with    Coupling set with
             dust cap* (1/8"-NPT male)  dust cap* (1/8"-NPT male)   dust caps* includes CH-2   700 bar
                                                                        and CR-2











                  Ch-4                       CR-4                       CS-4
              1/4" male coupling with    1/4" female coupling with    Coupling set with
             dust cap* (1/4"-NPT female)  dust cap* (1/4"-NPT male)  dust caps* includes CH-4
                                                                        and CR-4










                  Ch-6                       CR-6                       CS-6                       UDC-1
              3/8" male coupling with    3/8" female coupling with    3/8" coupling set with    Universal dust cap to suit
             dust cap* (3/8"-NPT female)  dust cap* (3/8"-NPT male)  dust caps includes CH-6   3/8" male and female
                                                                        and CR-6                   couplings










                  CFh-6                      CFR-6                      CFS-6                     GCS-210
            Male half snap coupling with   Female half snap coupling   Snap coupling set with dust   Gauge coupling set with
             dust cap (3/8"-NPT female)  with dust cap (3/8"-NPT    caps includes CFH-6 and    dust caps. Compact pin
                                             female)                    CFR-6                      design


                                                                                           1/4"-NPT male



                                                                                           1/4"-NPT female

         * Dust cap not shown
