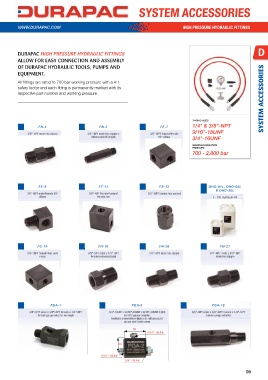

Page 95 - Durapac_2016
P. 95

|SYSTEM ACCESSORIES




         WWW.DURAPAC.COM                                                          HIGH PRESSURE HYDRAULIC FITTINGS




                                                                                                                    D
         Durapac HIgH preSSure HyDrauLIc fIttIngS
         aLLow for Easy coNNEctioN aND assEmbLy
         of Durapac hyDrauLic tooLs, pumps aND
         EquipmENt.
         All fittings are rated to 700 bar working pressure with a 4:1
         safety factor and each fitting is permanently marked with its
         respective part number and working pressure.                                                                 SYSTEM ACCESSORIES






                                                                                      ThREAD SIZES
                  FN-1                       FN-3                       FE-7          1/4" & 3/8"-NPT
                                                                                      9/16"-18UNF
             3/8"-NPT male hex nipple   3/8"-NPT male hex nipple x   3/8"-NPT female/female
                                          80mm overall length          90° elbow      3/4"-16UNF


                                                                                      MAXIMUM OPERATING
                                                                                      PRESSURE
                                                                                      700 - 2,800 bar






                  FE-9                       FT-11                      FS-13                 DhO-01L, DhO-05L
                                                                                                 & DhO-20L
             3/8"-NPT male/female 90°   3/8"-NPT female/female/    3/8"-NPT female hex socket
                  elbow                     female tee                                          1 - 20 L Hydraulic Oil












                  FC-15                      FR-16                      FN-26                      FN-27
             3/8"-NPT female four port   3/8"-NPT male x 1/4"-NPT   1/4"-NPT male hex nipple  1/4"-NPT male x 3/8"-NPT
                   cross                 female reducing bush                                    male hex nipple











                       FGA-1                                FGA-2                              FGA-18
              3/8"-NPT male x 3/8"-NPT female x 1/4"-NPT   3/4"-16UNF x 9/16"-18UNF x 9/16"-18UNF 2,800   3/8"-NPT male x 3/8"-NPT female x 1/4"-NPT
                  female gauge adaptor on angle         bar W.P gauge adaptor.              female gauge adaptor
                                                   Includes connection nipples to suit pressure
                                                        gauge and hand pump

                                                            50
                                                                  9/16"-18UNF

                                                      30

                                              9/16"-18UNF
                                                         3/4"-16UNF

                                                                                                              95
