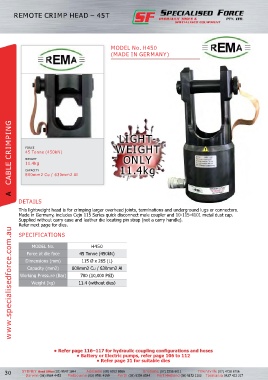

Page 40 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19
P. 40

REMOTE CRIMP HEAD – 45T







                                                  MODEL No. H450
                                                  (MADE IN GERMANY)

















      A   CABLE CRIMPING  FORCE                     WEIGHT

                                                      LIGHT-



            45 Tonne (450kN)
                                                        ONLY
            WEIGHT
            11.4kg
                                                      11.4kg
            CAPACITY
            800mm2 Cu / 630mm2 Al





         DETAILS
         This lightweight head is for crimping larger overhead joints, terminations and underground lugs or connectors.
         Made in Germany, includes Cejn 115 Series quick disconnect male coupler and 10-115-4101 metal dust cap.
         Supplied without carry case and leather die locating pin strap (not a carry handle).
         Refer next page for dies.
      www.specialisedforce.com.au
         SPECIFICATIONS

               MODEL No.                 H450
             Force at die face      45 Tonne (450kN)
            Dimensions (mm)          115 Ø x 285 (L)

             Capacity (mm2)      800mm2 Cu / 630mm2 Al
          Working Pressure (Bar)     700 (10,000 PSI)
               Weight (kg)          11.4 (without dies)

















                                   • Battery or Electric pumps, refer page 106 to 112
                                            • Refer page 31 for suitable dies
