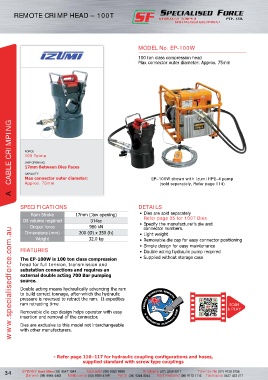

Page 44 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

REMOTE CRIMP HEAD – 100T

MODEL No. EP-100W

100 ton class compression head
Max connector outer diameter: Approx. 75mm

A CABLE CRIMPING FORCE EP–100W shown with Izumi HPE–4 pump

100 Tonne
JAW OPENING
17mm Between Dies Faces
CAPACITY
Max connector outer diameter:
Approx. 75mm

SPECIFICATIONS DETAILS (sold seperately, Refer page 114)

Ram Stroke 17mm (Jaw opening) • Dies are sold separately
Oil volume required 314cc Refer page 35 for 100T Dies
Output force 980 kN • Specify the manufacturer’s die and
connector numbers.
www.specialisedforce.com.au
Dimensions (mm) 200 (Ø) x 350 (h) • Light weight
Weight 32.0 kg • Removable die cap for easy connector positioning
• Simple design for easy maintenance
FEATURES • Double acting hydraulic pump required

The EP-100W is 100 ton class compression • Supplied without storage case
head for full tension, transmission and
substation connections and requires an
external double acting 700 Bar pumping
source.
Double acting means hydraulically advancing the ram
to build correct tonnage, after-which the hydraulic
pressure is reversed to retract the ram. It expedites
ram retracting time. PROUDLY MARKETED, SERVICED SCAN

Removable die cap design helps operator with easy & SUPPORTED AUSTRALIA WIDE & PLAY
insertion and removal of the connector.
Dies are exclusive to this model not interchangeable
with other manufacturers.

- Refer page 116–117 for hydraulic coupling configurations and hoses,
supplied standard with screw type couplings
