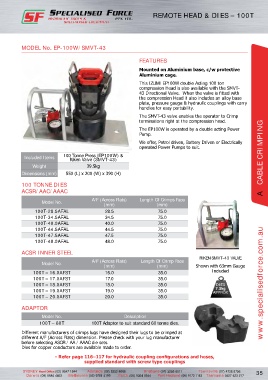

Page 45 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

REMOTE HEAD & DIES – 100T

MODEL No. EP-100W/SMVT-43

FEATURES
Mounted on Aluminium base, c/w protective
Aluminium cage.
This IZUMI EP100W double Acting 100 ton
compression Head is also available with the SMVT-
43 Directional Valve. When the valve is fitted with
the compression Head it also includes an alloy base
plate, pressure gauge & hydraulic couplings with carry
handles for easy portability.
The SMVT-43 valve enables the operator to Crimp
terminations right at the compression head.
The EP100W is operated by a double acting Power
Pump.
We offer, Petrol driven, Battery Driven or Electrically
operated Power Pumps to suit.

Included Items 100 Tonne Press (EP100W) & A CABLE CRIMPING
Riken Valve (SMVT-43)
Weight 39.5kg
Dimensions (mm) 550 (L) x 200 (W) x 390 (H)

100 TONNE DIES
ACSR/AAC/AAAC

Model No. A/F (Across Flats) Length Of Crimps Face
(mm) (mm)
100T-28.5AFAL 28.5 75.0
100T-34.5AFAL 34.5 75.0
100T-40.0AFAL 40.0 75.0
100T-44.5AFAL 44.5 75.0
100T-47.5AFAL 47.5 75.0
100T-48.0AFAL 48.0 75.0

ACSR INNER STEEL
RIKEN SMVT-43 VALVE
Model No. A/F (Across Flats) Length Of Crimp Face
(mm) (mm) Shown with 63mm Gauge
100T – 16.0AFST 16.0 35.0 Included
100T – 17.0AFST 17.0 35.0
100T – 18.0AFST 18.0 35.0 DIES www.specialisedforce.com.au
7.3kg
100T – 19.0AFST 19.0 35.0 APPROX
100T – 20.0AFST 20.0 35.0

ADAPTOR

Model No. Description
100T – 60T 100T Adaptor to suit standard 60 tonne dies.
Different manufacturers of crimps lugs have designed their lugs to be crimped at
different A/F (Across Flats) dimension. Please check with your lug manufacturer
before selecting ASCR / AA / AAAC die sets.
Dies for copper conductors are available made to order.

- Refer page 116–117 for hydraulic coupling configurations and hoses,
supplied standard with screw type couplings
