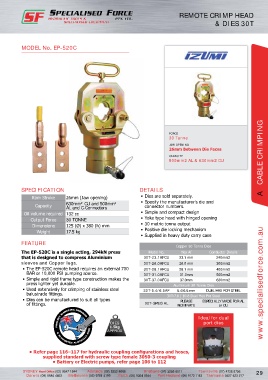

Page 39 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

REMOTE CRIMP HEAD
& DIES 30T

MODEL No. EP-520C

A CABLE CRIMPING

FORCE
30 Tonne

JAW OPENING
26mm Between Die Faces
CAPACITY
500mm2 AL & 630mm2 CU

SPECIFICATION DETAILS
Ram Stroke 26mm (Jaw opening) • Dies are sold separately.
Capacity 630mm² CU and 500mm² • Specify the manufacturer’s die and
connector numbers.
AL and C-Connectors
Oil volume required 132 cc • Simple and compact design
Output Force 30 TONNE • Yoke type head with hinged opening
Dimensions 125 (Ø) x 380 (h) mm • 30 metric tonne output
Weight 17.5 kg • Positive die locking mechanism
• Supplied in heavy duty carry case
FEATURE
Copper 30 Tonne Dies
The EP-520C is a single acting, 294kN press Model No. Hex Af Conductor Details
that is designed to compress Aluminium 30T-23.1AFCU 23.1 mm 240mm2
sleeves and Copper lugs. 30T-26.0AFCU 26.0 mm 300mm2
• The EP-520C remote head requires an external 700 30T-28.1AFCU 28.1 mm 400mm2
BAR or 10,000 PSI pumping source. 30T-31.0AFCU 31.0mm 500mm2
• Simple and rigid frame type construction makes the 30T-37.0AFCU 37.0mm 630mm2
press lighter yet durable. Aluminium 30 Tonne Dies www.specialisedforce.com.au
• Used extensively for crimping of stainless steel 30T-5.4/6.5AF 5.4/6.5 mm DUEL HEX FOR STEEL
balustrade fittings. 30T-7.8 / 10.8 Duel Hex For Steel
• Dies can be manufactured to suit all types PLEASE ESPECIALLY MADE FOR AL
of fittings. 30T-SPECIAL NOMINATE or CU

PROUDLY MARKETED, SERVICED DIES Ideal for dual
port dies
1.5kg
& SUPPORTED AUSTRALIA WIDE APPROX

• Refer page 116–117 for hydraulic coupling configurations and hoses,
supplied standard with screw type female 3050-3 coupling
• Battery or Electric pumps, refer page 106 to 112
