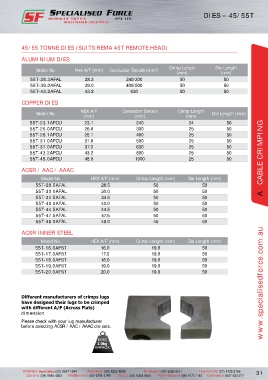

Page 41 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DIES – 45/55T

45/55 TONNE DIES (SUITS REMA 45T REMOTE HEAD)

ALUMINIUM DIES

Crimp Length Die Length
Model No. Hex A/F (mm) Conductor Details (mm )
2
(mm) (mm)
55T-28.3AFAL 28.3 240/300 50 50
55T-39.0AFAL 39.0 400/500 50 50
55T-43.2AFAL 43.2 630 50 50

COPPER DIES

HEX A/F Conductor Details Crimp Length
Model No. Die Length (mm)
(mm) (mm) (mm)
55T-23.1AFCU 23.1 240 24 50
55T-26.0AFCU 26.0 300 25 50
55T-28.1AFCU 28.1 400 25 50
55T-31.0AFCU 31.0 500 25 50
55T-37.0AFCU 37.0 630 25 50
55T-43.2AFCU 43.2 800 25 50
55T-48.0AFCU 48.0 1000 25 50 A CABLE CRIMPING

ACSR / AAC / AAAC

Model No. HEX A/F (mm) Crimp Length (mm) Die Length (mm)
55T-28.5AFAL 28.5 50 50
55T-30.0AFAL 30.0 50 50
55T-34.5AFAL 34.5 50 50
55T-40.0AFAL 40.0 50 50
55T-44.5AFAL 44.5 50 50
55T-47.5AFAL 47.5 50 50
55T-48.0AFAL 48.0 45 50

ACSR INNER STEEL

Model No. HEX A/F (mm) Crimp Length (mm) Die Length (mm)
55T-16.0AFST 16.0 19.0 50
55T-17.0AFST 17.0 19.0 50
55T-18.0AFST 18.0 19.0 50
55T-19.0AFST 19.0 19.0 50
55T-20.0AFST 20.0 19.0 50 www.specialisedforce.com.au

Different manufacturers of crimps lugs
have designed their lugs to be crimped
with different A/F (Across Flats)
dimension
Please check with your lug manufacturer
before selecting ACSR / AAC / AAAC die sets.

DIES
2.0kg
APPROX
