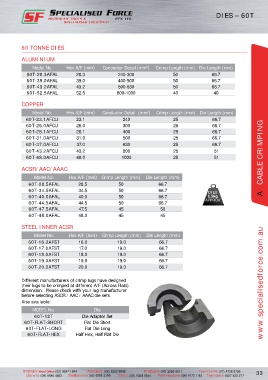

Page 43 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DIES – 60T

60 TONNE DIES

ALUMINIUM

Model No. Hex A/F (mm) Conductor Detail (mm ) Crimp Length (mm) Die Length (mm)
2
60T-28.3AFAL 28.3 240-300 50 66.7
60T-39.0AFAL 39.0 400-500 50 66.7
60T-43.2AFAL 43.2 500-630 50 66.7
60T-52.5AFAL 52.5 800-1000 40 40

COPPER
Model No. Hex A/F (mm) Conductor Detail (mm ) Crimp Length (mm) Die Length (mm)
2
60T-23.1AFCU 23.1 240 25 66.7
60T-26.0AFCU 26.0 300 25 66.7
60T-28.1AFCU 28.1 400 25 66.7
60T-31.0AFCU 31.0 500 25 66.7
60T-37.0AFCU 37.0 630 25 66.7
60T-43.2AFCU 43.2 800 25 51
60T-48.0AFCU 48.0 1000 25 51 A CABLE CRIMPING

ACSR/AAC/AAAC
Model No. Hex A/F (mm) Crimp Length (mm) Die Length (mm)
60T-28.5AFAL 28.5 50 66.7
60T-34.5AFAL 34.5 50 66.7 DIES
60T-40.0AFAL 40.0 50 66.7 1.5kg
60T-44.5AFAL 44.5 50 66.7 APPROX
60T-47.5AFAL 47.5 45 50
60T-48.0AFAL 48.0 45 45

STEEL INNER ACSR
Model No. Hex A/F (mm) Crimp Length (mm) Die Length (mm)
60T-16.0AFST 16.0 19.0 66.7
60T-17.0AFST 17.0 19.0 66.7
60T-18.0AFST 18.0 19.0 66.7
60T-19.0AFST 19.0 19.0 66.7
60T-20.0AFST 20.0 19.0 66.7

Different manufacturers of crimp lugs have designed
their lugs to be crimped at different A/F (Across Flats) www.specialisedforce.com.au
dimension. Please check with your lug manufacturer
before selecting ASCR / AAC / AAAC die sets.
Also available:
MODEL No. Die
60T-12T Die Adaptor Set
60T-FLAT-SHORT Flat Die Short
60T-FLAT-LONG Flat Die Long
60T-FLAT-HEX Half Hex, Half Flat Die
