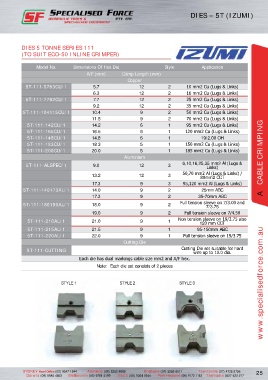

Page 35 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DIES – 5T (IZUMI)

DIES 5 TONNE SERIES 111
(TO SUIT ECO-50 INLINE CRIMPER)

Model No. Dimensions Of Hex Die Style Application
A/F (mm) Crimp Length (mm)
Copper
5T-111-5763CU/1 5.7 12 2 10 mm2 Cu (Lugs & Links)
6.3 12 2 16 mm2 Cu (Lugs & Links)
5T-111-7792CU/1 7.7 12 2 25 mm2 Cu (Lugs & Links)
9.2 12 2 35 mm2 Cu (Lugs & Links)
5T-111-104115CU/1 10.4 9 2 50 mm2 Cu (Lugs & Links)
11.5 9 2 70 mm2 Cu (Lugs & Links)
5T-111-142CU/1 14.2 6 1 95 mm2 Cu (Lugs & Links)
5T-111-165CU/1 16.5 6 1 120 mm2 Cu (Lugs & Links)
5T-111-148CU/1 14.8 6 1 19/2.00 OH
5T-111-183CU/1 18.3 5 1 150 mm2 Cu (Lugs & Links)
5T-111-200CU/1 20.0 5 1 185 mm2 Cu (Lugs & Links)
Aluminium A CABLE CRIMPING
5T-111-ALSPEC/1 9.0 12 3 6,10,16,25,35 mm2 Al (Lugs &
Links)
13.2 12 3 50,70 mm2 Al (Lugs & Links) /
80mm2 CCT
17.3 9 3 95,120 mm2 Al (Lugs & Links)
5T-111-140173AL/1 14.0 9 2 25mm ABC
17.3 9 2 35-70mm ABC
5T-111-180190AL/1 18.0 9 2 Full tension sleeve on 7/3.00 and
7/3.75
19.0 9 2 Full tension sleeve on 7/4.50
5T-111-210AL/1 21.0 9 1 Non tension sleeve on 19/3.75 also
120 mm CCT
5T-111-215AL/1 21.5 9 1 95-150mm ABC
5T-111-220AL/1 22.0 9 1 Full tension sleeve on 19/3.75
Cutting Die
5T-111-CUTTING Cutting Die set suitable for hard
wire up to 10.0 dia.
Each die has dual markings cable size mm2 and A/F hex.
Note: Each die set consists of 2 pieces

STYLE 1 STYLE 2 STYLE 3 www.specialisedforce.com.au
