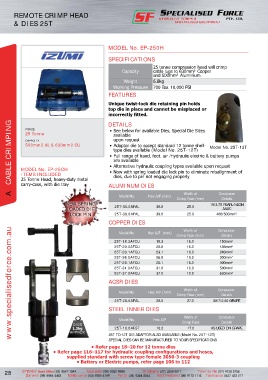

REMOTE CRIMP HEAD
& DIES 25T

MODEL No. EP-250H

SPECIFICATIONS

25 tonne compression head will crimp
Capacity cable lugs to 630mm² Copper
and 500mm² Aluminium.
Weight 6.8kg
Working Pressure 700 Bar. 10,000 PSI
FEATURES

Unique twist-lock die retaining pin holds
top die in place and cannot be misplaced or
incorrectly fitted.
A CABLE CRIMPING MODEL No. EP-25OH • Adaptor die to accept standard 12 tonne shell- Model No. 25T-12T
DETAILS
FORCE
• See below for available Dies, Special Die Sizes
25 Tonne
available
upon request
CAPACITY
500mm2 AL & 630mm2 CU
type dies available (Model No. 25T-12T)
• Full range of hand, foot, air /hydraulic electric & battery pumps
are available
• Alternative hydraulic coupling types available upon request
• Now with spring loaded die lock pin to eliminate misalignment of
ITEMS INCLUDED
dies, due to pin not engaging properly
25 Tonne Head, heavy-duty metal
carry-case, with die tray
ALUMINUM DIES
Width of
Hex A/F (mm)
Model No.
Crimp Face (mm) Conductor
Details
NEW SPRING 25T-30.0AFAL 30.0 25.0 19/3.75 PEARL-NEON
LOADED DIE AAAC
LOCK PIN 25T-39.0AFAL 39.0 25.0 400/500mm²
COPPER DIES
www.specialisedforce.com.au
Width of Conductor
Model No. Hex A/F (mm)
Crimp Face (mm) Details
25T-18.3AFCU 18.3 16.0 150mm²
25T-20.0AFCU 20.0 16.0 185mm²
25T-23.1AFCU 23.1 16.0 240mm²
25T-26.0AFCU 26.0 16.0 300mm²
25T-28.1AFCU 28.1 16.0 400mm²
25T-31.0AFCU 31.0 16.0 500mm²
25T-37.0AFCU 37.0 12.2 630mm²
ACSR DIES

Width of Conductor
Model No. Hex A/F (mm)
Crimp Face (mm) Details
25T-28.5AFAL 28.5 27.0 30/7/2.50 GRAPE
STEEL INNER DIES

Width of Conductor
Model No. Hex A/F Crimp Face Details
DIES
1.3kg 25T-16.0AFST 16.0 17.0 AS USED ON GRAPE
APPROX
25T TO 12T DIE ADAPTOR ALSO AVAILABLE (Model No. 25T-12T)
SPECIAL DIES CAN BE MANUFACTURED TO YOUR SPECIFICATIONS
• Refer page 18–20 for 12 tonne dies
• Refer page 116–117 for hydraulic coupling configurations and hoses,
supplied standard with screw type female 3050-3 coupling
• Battery or Electric pumps, refer page 106 to 112
