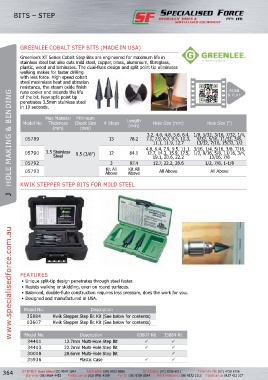

Page 376 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

BITS – STEP

GREENLEE COBALT STEP BITS (MADE IN USA)

Greenlee’s XT Series Cobalt Step Bits are engineered for maximum life in
stainless steel but also cuts mild steel, copper, brass, aluminium, fibreglass,
plastic, wood and laminates. The dual-flute design and split point tip eliminates
walking makes for faster drilling
with less force. High speed cobalt
steel maximises heat and abrasion
resistance, the steam oxide finish
J HOLE MAKING & BENDING
runs cooler and extends the life SCAN
of the bit. New split point tip & PLAY
penetrates 3.5mm stainless steel
in 10 seconds.

Max Material Minimum
Model No Thickness Chuck Size # Steps Length Hole Size (mm) Hole Size (“)
(mm) (mm) (mm)
3.2, 4.0, 4.8, 5.6, 6.4, 1/8, 5/32, 3/16, 7/32, 1/4,
05789 13 78.2 7.1, 7.9, 8.7, 9.5, 10.3, 9/32, 5/16, 11/32, 3/8,
11.1, 11.9, 12.7 13/32, 7/16, 15/32, 1/2
4.8, 6.4, 7.9, 9.5, 11.1, 3/16, 1/4, 5/16, 3/8, 7/16,
05790 3.5 Stainless 9.5 (3/8”) 12 84.1 12.7, 14.3, 15.9, 17.5, 1/2, 9/16, 5/8, 11/16, 3/4,
Steel 19.1, 20.6, 22.2 13/16, 7/8
05792 3 87.4 12.7, 22.2, 28.6 1/2, 7/8, 1-1/8
Kit All
Kit All
05793 Above Above All Above All Above
KWIK STEPPER STEP BITS FOR MILD STEEL

www.specialisedforce.com.au

FEATURES
• Unique split-tip design penetrates through steel faster.
• Resists walking or skidding, even on round surfaces.
• Balanced, double-flute construction requires less pressure, does the work for you.
• Designed and manufactured in USA.

Model No. Description
35884 Kwik Stepper Step Bit Kit (See below for contents)
03607 Kwik Stepper Step Bit Kit (See below for contents)

Model No. Description 03607 Kit 35884 Kit
34401 12.7mm Multi-Hole Step Bit  
34403 22.2mm Multi-Hole Step Bit  
30008 28.6mm Multi-Hole Step Bit 
35936 Plastic Case  
