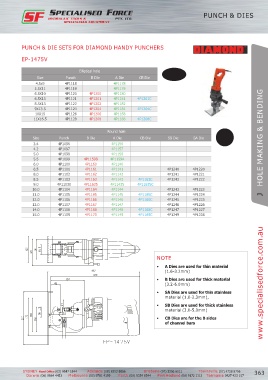

Page 375 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH & DIES

PUNCH & DIE SETS FOR DIAMOND HANDY PUNCHERS

EP-1475V

Elliptical hole
Size Punch B Die A Die CB Die
4.5x9 4P1118 4P1178
5.5X11 4P1119 4P1179
6.5X10 4P1120 4P1200 4P1180
6.5X13 4P1121 4P1201 4P1181 4P1201C
8.5X13 4P1122 4P1202 4P1182
9X13.5 4P1124 4P1204 4P1184 4P1204C
10X15 4P1126 4P1206 4P1168
11X16.5 4P1128 4P1208 4P1188 4P1208C

Round hole
Size Punch B Die A Die CB Die SB Die SA Die
3.4 4P1096 4P1156 J HOLE MAKING & BENDING
4.2 4P1097 4P1157
5.0 4P1098 4P1158
5.5 4P1099 4P1159B 4P1159A
6.0 4P1100 4P1160 4P1140
6.5 4P1101 4P1161 4P1141 4P1240 4P1220
8.0 4P1102 4P1162 4P1142 4P1241 4P1221
8.5 4P1103 4P1163 4P1143 4P1163C 4P1242 4P1222
9.0 4P11030 4P11635 4P11435 4P11635C
10.0 4P1104 4P1164 4P1144 4P1243 4P1223
11.0 4P1105 4P1165 4P1145 4P1165C 4P1244 4P1224
12.0 4P1106 4P1166 4P1146 4P1166C 4P1245 4P1225
13.0 4P1107 4P1167 4P1147 4P1246 4P1226
14.0 4P1108 4P1168 4P1148 4P1168C 4P1247 4P1227
15.0 4P1109 4P1170 4P1149 4P1169C 4P1249 4P1228

NOTE

• A Dies are used for thin material
(1.6-3.2mm)

• B Dies are used for thick material
(3.2-6.0mm) www.specialisedforce.com.au
• SA Dies are used for thin stainless
material (1.0-2.3mm),
• SB Dies are used for thick stainless
material (3.0-5.0mm)
• CB Dies are for the B sides
of channel bars
