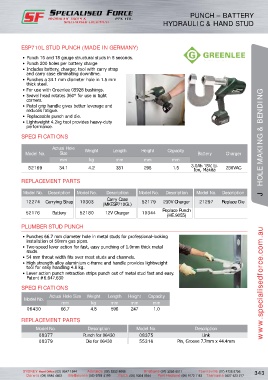

Page 355 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUNCH – BATTERY
HYDRAULIC & HAND STUD

ESP710L STUD PUNCH (MADE IN GERMANY)

• Punch 16 and 18 gauge structural studs in 5 seconds.
• Punch 200 holes per battery charge
• Includes battery, charger, tool with carry strap
and carry case eliminating downtime.
• Punches a 34.1 mm diameter hole in 1.5 mm
thick steel.
• For use with Greenlee 05928 bushings.
• Swivel head rotates 360° for use in tight
corners.
• Pistol grip handle gives better leverage and
reduces fatigue.
• Replaceable punch and die.
• Lightweight 4.2kg tool provides heavy-duty
performance.

SPECIFICATIONS

Actual Hole Weight Length Height Capacity J HOLE MAKING & BENDING
Model No. Size Battery Charger
mm kg mm mm mm

52169 34.1 4.2 381 298 1.5 3.0Ah 18V, Li- 230VAC
Ion, Makita
REPLACEMENT PARTS

Model No. Description Model No. Description Model No. Description Model No. Description
Carry Case
12274 Carrying Strap 10303 (MKESP710GL) 52179 230V Charger 21297 Replace Die

52176 Battery 52180 12V Charger 10344 Replace Punch
(HE.9055)

PLUMBER STUD PUNCH

• Punches 66.7 mm diameter hole in metal studs for professional-looking
installation of 50mm gas pipes.
• Two-speed lever action for fast, easy punching of 1.0mm thick metal
studs.
• 54 mm throat width fits over most studs and channels.
• High strength alloy aluminium c-frame and handle provides lightweight
tool for easy handling 4.8 kg.
• Lever action punch retraction strips punch out of metal stud fast and easy.
Patent #6,647,630

SPECIFICATIONS www.specialisedforce.com.au
Actual Hole Size Weight Length Height Capacity
Model No.
mm kg mm mm mm
06430 66.7 4.8 596 247 1.0

REPLACEMENT PARTS
Model No. Description Model No. Description
08377 Punch for 06430 08375 Link
08379 Die for 06430 55316 Pin, Groove 7.7mm x 44.4mm
