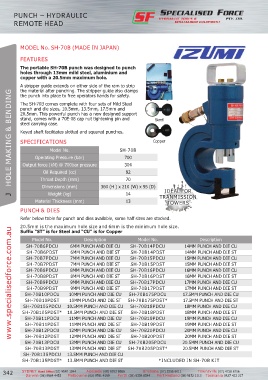

P. 354

PUNCH – HYDRAULIC
       REMOTE HEAD





          MODEL No. SH-70B (MADE IN JAPAN)

          FEATURES

          The portable SH-70B punch was designed to punch
          holes through 13mm mild steel, aluminium and
          copper with a 20.5mm maximum hole.
          A stripper guide extends on either side of the ram to strip
          the material after punching. The stripper guide also clamps
      J   HOLE MAKING & BENDING
          the punch into place to free operators hands for safety.
          The SH-70B comes complete with four sets of Mild Steel
          punch and die sizes, 10.5mm, 13.5mm, 17.5mm and
          20.5mm. This powerful punch has a new designed support
          stand, comes with a 70E-08 cap nut tightening pin and       Steel
          steel carrying case.

          Keyed shaft facilitates slotted and squared punches.
          SPECIFICATIONS                                             Copper

                       Model No.                      SH-70B
                 Operating Pressure (bar)               700
           Output force (kN) @ 700bar pressure          304
                    Oil Required (cc)                    82
                   Throat Depth (mm)                     70
                    Dimensions (mm)           360 (H ) x 210 (W) x 95 (D)
                                                                          IDEAL FOR
                      Weight (kg)                        14             TRANMISSION
                 Material Thickness (mm)                 13                TOWERS
          PUNCH & DIES

          Refer below table for punch and dies available, some half sizes are stocked.
          20.5mm is the maximum hole size and 6mm is the minimum hole size.
      www.specialisedforce.com.au
          Suffix “ST” is for Steel and “CU” is for Copper
               Model No.              Description             Model No.                   Description
             SH-70B6PDCU        6MM PUNCH AND DIE CU       SH-70B14PDCU            14MM PUNCH AND DIE CU
             SH-70B6PDST        6MM PUNCH AND DIE ST       SH-70B14PDST            14MM PUNCH AND DIE ST
             SH-70B7PDCU        7MM PUNCH AND DIE CU       SH-70B15PDCU            15MM PUNCH AND DIE CU
             SH-70B7PDST        7MM PUNCH AND DIE ST       SH-70B15PDST            15MM PUNCH AND DIE ST
             SH-70B8PDCU        8MM PUNCH AND DIE CU       SH-70B16PDCU            16MM PUNCH AND DIE CU
             SH-70B8PDST        8MM PUNCH AND DIE ST       SH-70B16PDST            16MM PUNCH AND DIE ST
             SH-70B9PDCU        9MM PUNCH AND DIE CU       SH-70B17PDCU            17MM PUNCH AND DIE CU
             SH-70B9PDST        9MM PUNCH AND DIE ST       SH-70B17PDST            17MM PUNCH AND DIE ST
            SH-70B10PDCU        10MM PUNCH AND DIE CU     SH-70B175PDCU           17.5MM PUNCH AND DIE CU
            SH-70B10PDST        10MM PUNCH AND DIE ST     SH-70B175PDST*          17.5MM PUNCH AND DIE ST
           SH-70B105PDCU       10.5MM PUNCH AND DIE CU     SH-70B18PDCU            18MM PUNCH AND DIE CU
           SH-70B105PDST*      10.5MM PUNCH AND DIE ST     SH-70B18PDST            18MM PUNCH AND DIE ST
            SH-70B11PDCU        11MM PUNCH AND DIE CU      SH-70B19PDCU            19MM PUNCH AND DIE CU
            SH-70B11PDST        11MM PUNCH AND DIE ST      SH-70B19PDST            19MM PUNCH AND DIE ST
            SH-70B12PDCU        12MM PUNCH AND DIE CU      SH-70B20PDCU            20MM PUNCH AND DIE CU
            SH-70B12PDST        12MM PUNCH AND DIE ST      SH-70B20PDST            20MM PUNCH AND DIE ST
            SH-70B13PDCU        13MM PUNCH AND DIE CU     SH-70B205PDCU           20.5MM PUNCH AND DIE CU
            SH-70B13PDST        13MM PUNCH AND DIE ST     SH-70B205PDST*          20.5MM PUNCH AND DIE ST
           SH-70B135PDCU       13.5MM PUNCH AND DIE CU
           SH-70B135PDST*      13.5MM PUNCH AND DIE ST                  *INCLUDED IN SH-70B KIT
