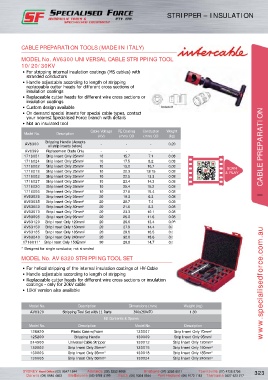

Page 335 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

STRIPPER – INSULATION

CABLE PREPARATION TOOLS (MADE IN ITALY)

MODEL No. AV6300 UNIVERSAL CABLE STRIPPING TOOL
10/20/30KV
• For stripping internal insulation coatings (MS cables) with
stranded conductors
• Handle adjustable according to length of stripping
replaceable cutter heads for different cross sections of
insulation coatings
• Replaceable cutter heads for different wire cross sections or
insulation coatings
• Custom design available
• On demand special inserts for special cable types, contact
your nearest Specialised Force branch with details
• Not an insulated tool

Cable Voltage PE Coating Conductor Weight
Model No. Description
(KV) (mm) OD (mm) OD (kg)
AV6300 Stripping Handle (Accepts - - - 0.20
all strip inserts below)
AV6399 Replacement Blade Only - - - - I CABLE PREPARATION
1716021 Strip Insert Only 25mm² 10 15.7 7.1 0.08
1716024 Strip Insert Only 25mm² 10 17.5 8.2 0.08
1716002 Strip Insert Only 25mm² 10 19.0 10.7 0.08 SCAN
1716013 Strip Insert Only 25mm² 10 22.3 13/15 0.08 & PLAY
1716003 Strip Insert Only 25mm² 10 22.5 13.3 0.08
1716027 Strip Insert Only 25mm² 10 23.4 14.3 0.08
1716020 Strip Insert Only 25mm² 10 25.4 16.2 0.08
1716006 Strip Insert Only 25mm² 10 27.8 18.4 0.08
AV63025 Strip Insert Only 25mm² 20 19.3 6.3 0.08
AV63035 Strip Insert Only 35mm² 20 20.7 7.4 0.08
AV63050 Strip Insert Only 50mm² 20 21.6 8.3 0.08
AV63070 Strip Insert Only 70mm² 20 23.3 10.1 0.08
AV63095 Strip Insert Only 95mm² 20 25.0 11.6 0.08
AV63120 Strip Insert Only 120mm² 20 26.6 13.4 0.08
AV63150 Strip Insert Only 150mm² 20 27.9 14.4 0.08
AV63185 Strip Insert Only 185mm² 20 29.8 16.5 0.08
AV63240 Strip Insert Only 240mm² 20 32.0 18.6 0.08
1716011* Strip Insert Only 150Emm² 30 29.8 14.7 0.08
* Designed for single conductor, not stranded
MODEL No. AV 6320 STRIPPING TOOL SET

• For helical stripping of the internal insulation coatings of HV-Cable
• Handle adjustable according to length of stripping
• Replaceable cutter heads for different wire cross sections or insulation
coatings - only for 20kV cable www.specialisedforce.com.au
• 10kV version also available

Model No. Description Dimensions (mm) Weight (kg)
AV6320 Stripping Tool Set with 11 Parts 340x260x70 1.80
Kit Contents & Spares
Model No. Description Model No. Description
128920 Plastic Case w/Foam 130007 Strip Insert Only 70mm²
125200 Stripping Handle 130009 Strip Insert Only 95mm²
244500 Universal Cable Stripper 130012 Strip Insert Only 120mm²
130002 Strip Insert Only 25mm² 130015 Strip Insert Only 150mm²
130003 Strip Insert Only 35mm² 130018 Strip Insert Only 185mm²
130005 Strip Insert Only 50mm² 130024 Strip Insert Only 240mm²
