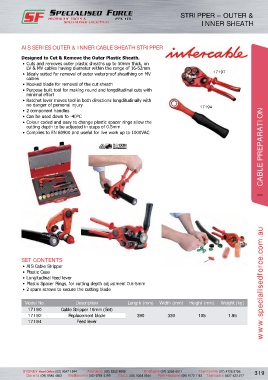

Page 331 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

STRIPPER – OUTER &
INNER SHEATH

AIS SERIES OUTER & INNER CABLE SHEATH STRIPPER

Designed to Cut & Remove the Outer Plastic Sheath.
• Cuts and removes outer plastic sheaths up to 50mm thick, on
LV & MV cables having diameter within the range of 16-52mm
• Idealy suited for removal of outer waterproof sheathing on MV 17197
cables
• Hooked blade for removal of the cut sheath
• Purpose built tool for making round and longditudinal cuts with
minimal effort
• Ratchet lever moves tool in both directions longditudinally with
no danger of personal injury 17194
• 2 component handles
• Can be used down to -40ºC
• Colour coded and easy to change plastic spacer rings allow the
cutting depth to be adjusted in steps of 0.5mm
• Complies to EN 60900 and useful for live work up to 1000VAC I CABLE PREPARATION

SET CONTENTS
• AIS Cable Stripper
• Plastic Case
• Longitudinal feed lever
• Plastic Spacer Rings, for cutting depth adjustment 0.5-5mm www.specialisedforce.com.au
• 2 spare screws to secure the cutting blade

Model No. Description Length (mm) Width (mm) Height (mm) Weight (kg)
17190 Cable Stripper 16mm (Set)
17192 Replacement blade 390 330 105 1.95
17194 Feed lever
